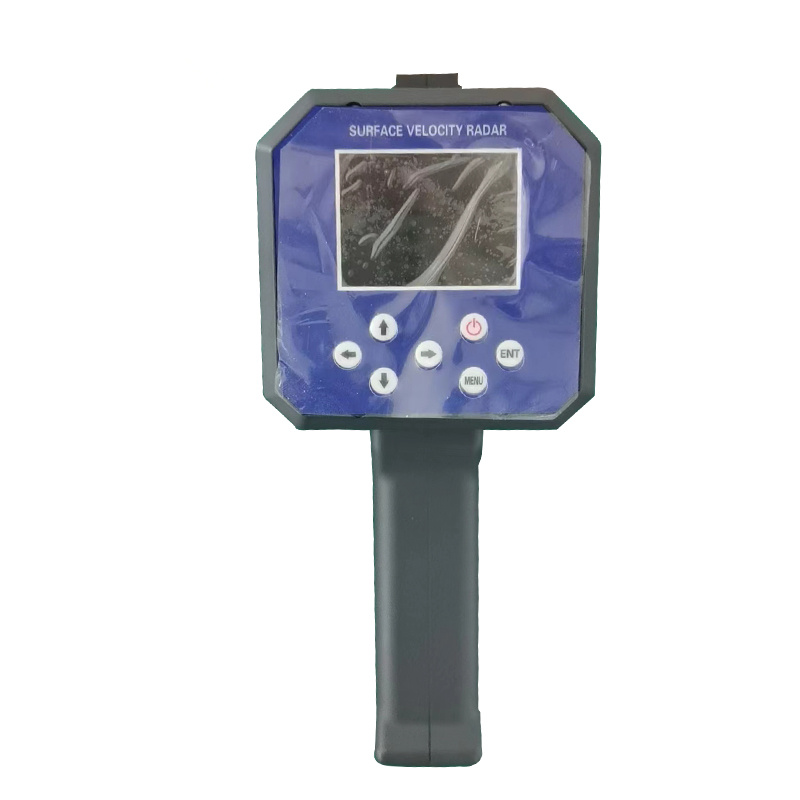

Handheld radar flow meter

Handheld radar flow meter is a fully automatic flowmeter based on microwave technology that measures water velocity and water level in a non-contact manner.FT-LS5Handheld radar flow meter uses K-band radio waves to measure the flow rate of rivers, sewage, mud and oceans in a non-contact manner. The instrument is compact, handheld, powered by lithium-ion batteries and easy to use. It is not corroded by sewage or disturbed by sediment, and the non-contact measurement ensures the safety of the measurer.

The instrument includes a highly sensitive planar narrow-band radar probe and an angle meter, and is handheld. The built-in operating software is menu-based and easy to operate.

Handheld radar flow meter instrument features

ØFor single-person use, weighs less than 1Kg, can be handheld for measurement or placed on a tripod (optional);

ØChinese interface, easy to operate;

ØNon-contact operation, not affected by sediment or water corrosion;

ØAutomatic correction of horizontal and vertical angles;

ØMultiple measurement modes, fast measurement and continuous measurement;

ØBuilt-in large-capacity lithium-ion battery, can be used continuously for more than 10 hours;

There are multiple charging methods to choose from, including AC, car and mobile power charging.

Handheld radar flow meter instrument details

Measuring range: 0.1~30m/s

Measurement accuracy: ±3%±0.03m/s

Radio wave transmission angle: 12°

Standard power of radio wave transmission: 10mW

Radio frequency: 24GHz

Angle compensation: vertical angle automatic

Storage size: 100 measurement results

Rechargeable lithium-ion battery

Battery capacity (2800mAh)

Standby state (at 25°C) more than 6 months

Continuous working more than 10 hours

System Components Table
