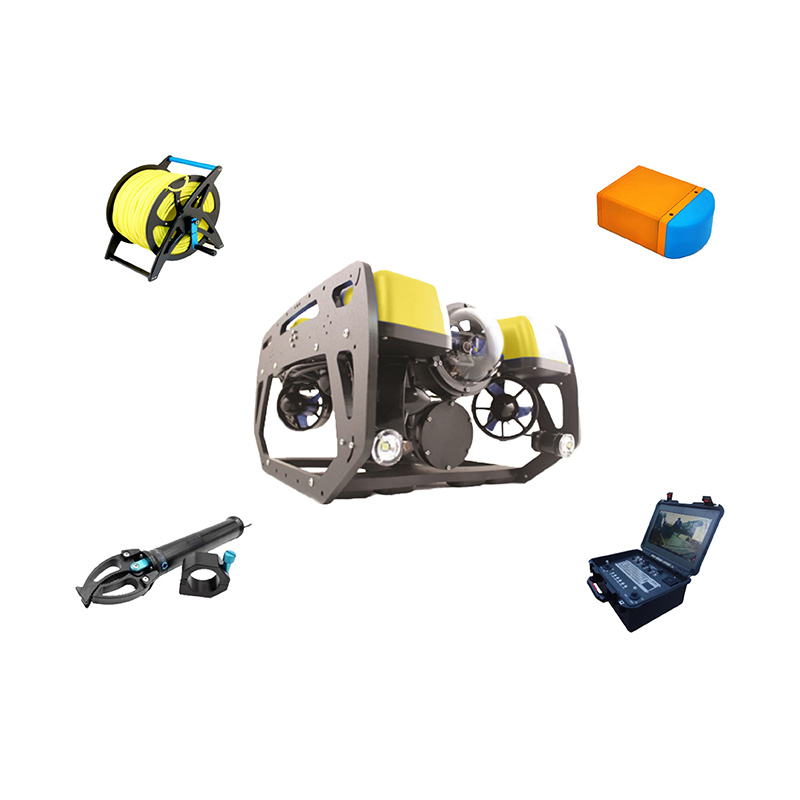

Underwater search and rescue robot

1.Underwater search and rescue robot product introduction

Underwater search and rescue robot is used for underwater search and rescue, providing effective information for enterprises and institutions such as emergency, fire, water conservancy, maritime and water public security.Underwater search and rescue robot is used for underwater search and rescue, underwater detection, underwater observation, and turbid water salvage; Underwater search and rescue robot uses high-definition cameras and multi-beam sonar to transfer the underwater environment (including turbid waters) through video or photos.It is sent back to the ground for analysis by search and rescue personnel, effectively shortening the search and rescue time and improving the search and rescue success rate; it is suitable for various waters such as seas, reservoirs, rivers, lakes, etc.

2.Underwater search and rescue robot technical parameters

1.Pressure-resistant water depth: 300m.

2.Weight: 15kg.

3.Speed: 3 knots.

4.Cable length: 300m.

5.Protection level: IP68.

6.Battery capacity: 15000mAh.

7.Battery life: 5 hours.

8.Charging time: 3 hours.

9.Thrust: 10Kg.

10.Camera gimbal: 2-megapixel HD, 1080P camera.

11.Functions: front and back and horizontal linear motion, in-situ steering, snorkeling control, underwater video, underwater photography, fixed depth motion mode, fixed navigation motion mode, free movement mode.

12.Lighting function: Equipped with LED light, brightness 5000LM, brightness adjustable.

13.Thruster: 6 thrusters (2 vertical and 4 vector distributions horizontally), the thruster power is adjustable.

14.Sensor configuration: acceleration, gyroscope, electronic compass, depth sensor, temperature sensor, built-in air pressure sensor of the cabin, and built-in temperature sensor of the cabin.

15.Accessories: robot, control station.

16.Multi-beam sonar:

17.Beam: 512.

18.Operating frequency: 750kHz.

19.Range: 120m.

20.Resolution: 3mm.

21.Update rate: 40Hz.
