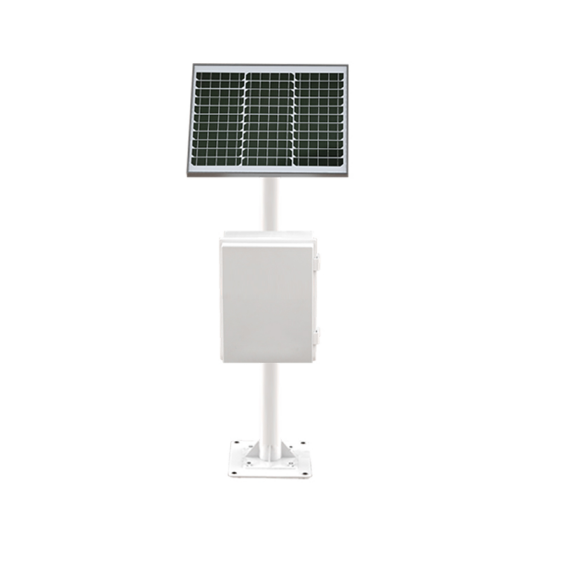

The FT-QJZ1 Tilt Acceleration Monitoring Station is a standard industrial-grade 3-axis inclinometer specifically designed for monitoring equipment tilt status and acceleration changes. This device is capable of long-term outdoor operation and is suitable for various industrial monitoring scenarios.
This product is widely used in industries such as industrial tilt measurement, dangerous building monitoring, ancient architecture protection monitoring, bridge and tower inclination measurement, tunnel monitoring, dam monitoring, weighing system tilt compensation, and drilling inclination control. It features safe and reliable design, simple appearance, and convenient installation.
Functional Features
The FT-QJZ1 adopts Kalman filtering algorithm to ensure accurate and stable angle data collection. The device has a wide angle measurement range with good output signal linearity, meeting the needs of most environmental applications.
Equipped with a dedicated 485 circuit, the device supports standard ModBus-RTU communication protocol, allowing users to set communication addresses and baud rates independently. It 采用 a 5~30V DC wide voltage design for power supply, offering strong adaptability.
Technical Parameters
Filtering Algorithm: Kalman filtering algorithm
Power Supply Range: DC 5-30V
Average Power Consumption: ≤0.15W
Operating Environment: -40℃ to 60℃, relative humidity 0-95% (non-condensing)
Measurement Range: X-axis -180°~180°; Y-axis -90°~90°; Z-axis -180°~180°; acceleration ±2g
Resolution: 0.01°
The device can measure X, Y, Z three-axis tilt angles and output data such as acceleration, tilt angle, natural frequency, and maximum amplitude. Typical accuracy specifications: X and Y axis static accuracy ±0.1°, dynamic accuracy ±0.5°; Z axis static accuracy ±0.5°; acceleration accuracy ±10^(-3)gn. Temperature drift range is ±(0.5°~1°) (-40°C~+65°C).
The device supports intelligent data collection, forwarding, and storage, with automatic and manual polling functions. Parameter settings support network mode (2G/3G/4G) or SMS (GSM) mobile communication, low-power wide area network, and satellite communication modes, with free switching capability.
Users can set device time, data storage intervals, and transmission intervals through the host settings page or mobile phone. The system supports remote data viewing, allowing query of all user operation records and specific user operation records within a specified time period. It also supports analyzing data change trends of designated sensors within specific time periods.
Hardware Configuration
Response Time: <1S
Data Logger Power Interface: GX-12-3P plug, input voltage 5V
Data Output: RS232, Json data format
Data Logger Power Supply: DC5V±0.5V, peak current 1A
Power Supply System: 30W solar power/20AH (including charge controller)
Pole: 1.5 meters height, 76mm diameter, with 'X' type bracket
Equipment Box: Iron galvanized spray protection box
Ground Cage: φ16mm threaded steel, 470mm height, 260mm width, including screws
Protection Rating: IP65
Dimensions: 905836mm
Output Signal: RS485 (Modbus protocol)
