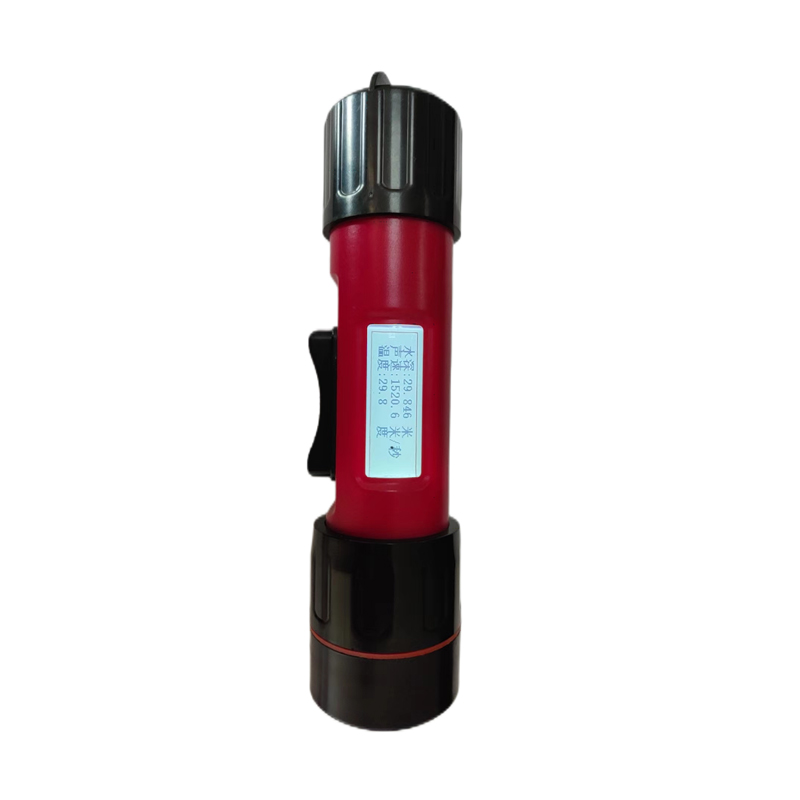

Handheld Digital Depth Sounder

1.Working principle of Handheld Digital Depth Sounder

Handheld Digital Depth Sounder uses ultrasonic sonar technology to measure and record water temperature and depth data from multiple angles up to 150m.The speed of sound waves in air is 340 meters/second and in water is about 1500 meters/second.It takes exactly 1 second for a sound wave to travel 750 meters underwater.Measure the round trip time of the sound wave.

Can calculate underwater target depth.Ultrasonic waves are sound waves with a frequency higher than human hearing and are suitable for underwater detection.

The depth sounder uses an ultrasonic transducer to both emit and receive ultrasonic waves.It displays the underwater target on the LCD screen through recording and calculates the underwater depth for display.

2.Technical parameters of Handheld Digital Depth Sounder

1.Adopt high-resolution character-type Chinese LCD screen, digital and graphic display

2.High brightness LED backlight;

3.Automatic range tracking measurement, capable of real-time, accurate and stable measurement

4.Display: water depth, water temperature, and water obstacle display

5.Sonar frequency 200KHZ

6.Blind area: less than ≤0.5m (standard environment)

7.Automatic temperature display and temperature compensation calculation

8.Measuring range 150m.Accuracy: 1%

9.Works at 9V (lithium battery or laminated battery)

10.Temperature and water depth can be switched between imperial and metric systems

11.Instrument size 205*55mm, with lanyard

12.Sonar angle 18±2 (or 30° optional)°

13.The whole machine (IP6X protection level) can withstand underwater pressure of 60 meters

14.Battery working time: ≥6h
