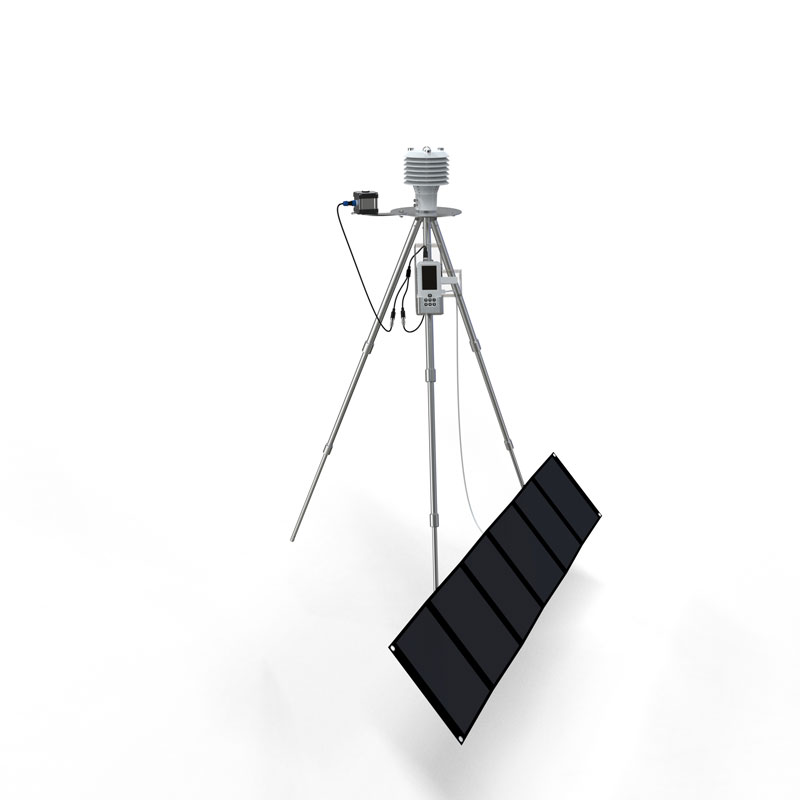

Handheld agricultural meteorological environment

1、Handheld agricultural meteorological environment Device Description

Handheld agricultural meteorological environment is a small, automatic weather station for monitoring the agricultural ecological environment. It can measure data such as temperature, humidity, light intensity, and carbon dioxide as soon as it is turned on.Handheld agricultural meteorological environment is an integrated handheld agricultural environment and meteorological multi-element monitoring terminal. It adopts industrial-grade precision sensors, intelligent processing chips, and a modular expansion architecture, specifically designed for modern agriculture (field fields/greenhouses/orchards/nurseries), forestry ecology, meteorology and environmental protection, water conservancy and hydrology, geological exploration, dryland water-saving irrigation, plant cultivation, scientific research and teaching, field emergency surveys, third-party testing, and soil surveys. It can simultaneously monitor six environmental parameters: air temperature, air humidity, light intensity, carbon dioxide, dew point temperature, and photosynthetically active radiation. Integrating real-time measurement, local storage, wireless transmission, and cloud platform management, it meets the needs of mobile inspections, fixed-point observations, data traceability, and project acceptance. It features portability, durability, accurate measurement, strong expandability, and simple operation.

2、Handheld agricultural meteorological environment Technical Specifications

Air Temperature Range: -40-80℃; Accuracy: ±0.3℃ (25℃); Resolution: 0.01℃

Air Humidity Range: 0-100%RH; Accuracy: ±3%RH (20%~80%); Resolution: 0.01%RH

Light Intensity Range: 0-157286 lux; Accuracy: <±3%; Resolution: 1 lux

Carbon Dioxide Measurement Range: 400-5000ppm; Accuracy: ±(50ppm+5% of reading); Resolution: 1ppm

Dew Point Temperature Range: 0~+70℃; Accuracy: ±1℃; Resolution: 0.1℃

Photosynthetically Active Radiation Range: 0-2000W/m²; Accuracy: <±3%; Resolution: 1W/m²

3、Handheld agricultural meteorological environment Equipment Functions and Performance Characteristics

1. Measurement and Expansion Capabilities: Supports simultaneous measurement with multiple sensors, ensuring accuracy without interference. Sensors are automatically recognized upon plug-and-play, with universal and interchangeable interfaces. Up to 32 sensors can be added. Main unit IP65/electrode IP68 protection. Supports flexible multi-channel configuration.

2. Data Acquisition and Storage: Supports manual acquisition and timed automatic acquisition. Recording interval is adjustable from 1 to 60 minutes. Built-in Flash storage: 280 million data points per parameter. Supports automatic power-off protection. Standard 4G memory card/external SD card for unlimited large-capacity storage. Supports direct export via USB/data cable/USB flash drive, compatible with Excel, spreadsheets, and curve formats.

3. Communication and Remote Management: 4G wireless data upload, optional SMS module. Equipped with a cloud platform management system (B/S architecture), supporting web page + mobile APP (Android/iOS). Data is encrypted and backed up in the cloud to prevent loss and tampering, meeting the needs of scientific research and project archiving. The platform supports curve and report generation, printing, export, and online upgrades.

4. Location and Traceability: Built-in GPS module automatically binds data to latitude and longitude coordinates, supports display of measurement point geographic location, and meets the requirements of grid-based monitoring and traceability.

5. Human-Machine Interaction and Safety: High-definition Chinese LCD screen, supports Chinese and English switching, real-time display of parameters, time, storage capacity, battery level, and location information. Low-power system design with system monitoring, anomaly protection, and anti-crash features.

6. Power Supply and Battery Life: Built-in 3.7V 3.8AH lithium battery, equipped with an external 60W portable folding solar panel. Overall low power consumption, suitable for long-term unattended operation in the field.

7. Structure and Environmental Adaptability: Integrated aluminum alloy triangular bracket with retractable structure design, compact size, easy to carry. Working environment: -10℃～60℃; 5%RH～95%RH (non-condensing). Industrial-grade durable design, suitable for long-term and frequent use in the field. Comes with standard packaging, strong protection, and easy transportation and storage.
