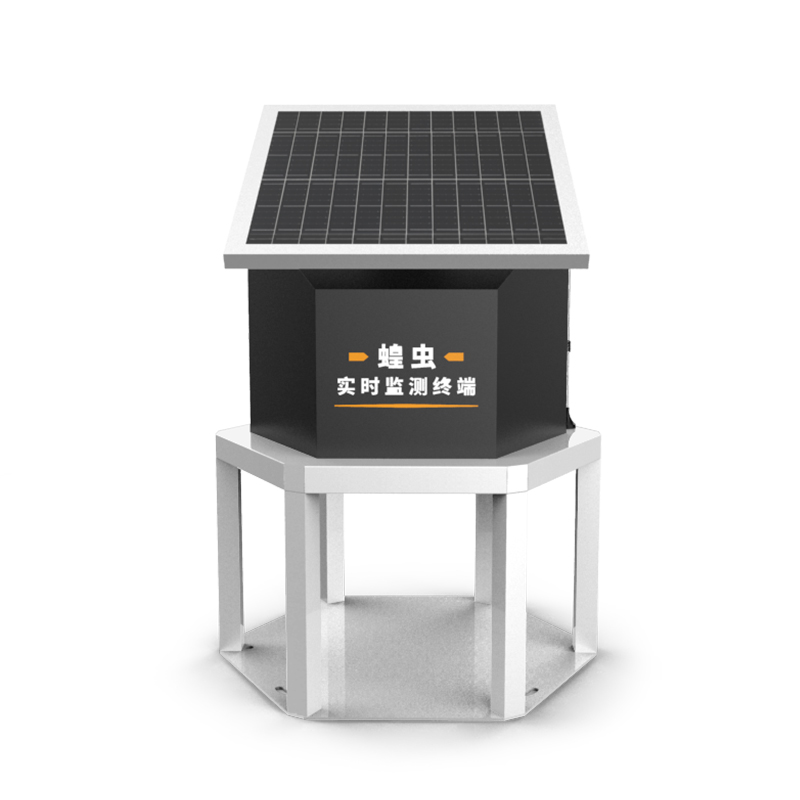

Locust online monitoring station

1.Features of Locust online monitoring station

Locust online monitoring station is a locust remote monitoring system that uses attractants and lights to attract locusts and provide locust density monitoring for analysis and management of locusts.Locust online monitoring station is mainly suitable for locust breeding areas.It can collect, analyze and calculate information such as locust population density and age characteristics through light and sex luring.It supports time control, automatic photography, and automatic identification, and can identify common forest and grass locusts.It can realize the collection and analysis of grassland locust information at fixed monitoring points, and transmit the data back to the monitoring and early warning center in real time.

2.Locust online monitoring station performance characteristics

1.Stainless steel spray-coated shell design.

2.Integrate light attraction, sex attraction, machine vision, Internet of Things technology and big data technology to realize online monitoring of locusts.

3.The insects are attracted by two methods: attracting with locust-specific attractants and attracting with double lights, and the double lights can be interchanged at regular intervals.

4.It consists of an integrated control system, a 20-megapixel high-definition camera system, and an insect collection platform, which can clearly capture photos of locusts in both static and moving states.

5.Support time control function, automatic photo taking, automatic identification, and can identify common forest grass locusts.

6.Through data collection, analysis and calculation, the density and age characteristics of locust populations can be obtained.

7.Remote real-time monitoring and data alarm can be performed through app or web client.

8.Equipped with GPS positioning system, the location information can be directly uploaded to the server.

9.Data transmission can be achieved through a variety of wireless networks (3G/4G/5G), and data supports local storage.

10.The whole machine adopts rainproof design and can work normally even on rainy days.

3.Technical parameters of Locust online monitoring station

1.Working voltage: DC12V

2.Double light source for attracting insects: yellow light 580-620nm, red light wavelength 640-680nm

3.Solar panel power: ≥40W

4.Battery: DC12/20AH lithium battery

5.Power consumption: standby state ≤ 10W

6.Design life ≥ 10 years
