Wheat stripe rust monitoring instrument

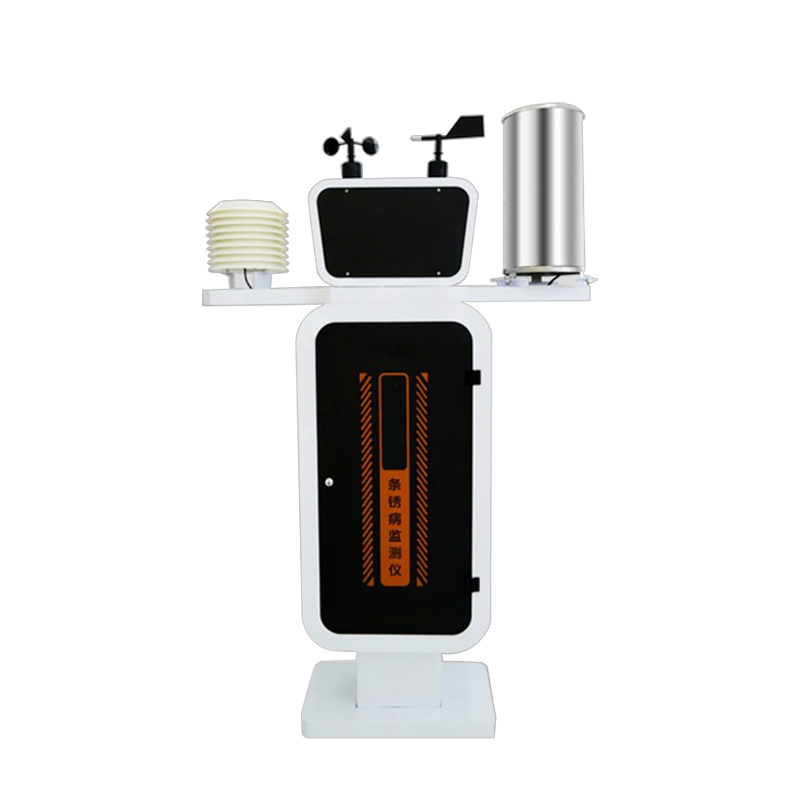

1.Wheat stripe rust monitoring instrument product introduction:

Wheat stripe rust monitoring instrument is a monitoring equipment for stripe rust which integrates meteorological monitoring and intelligent spore capture microscopy imaging.The real-time monitoring and early warning instrument for crop diseases is an unattended meteorological collection system that integrates meteorological data collection, storage, transmission and management.The wheat stripe rust monitoring instrument monitors wind speed, wind direction, rainfall, air temperature, air humidity, atmospheric pressure and other factors on-site around the clock.And transmits them to the platform for storage and analysis via 4G wireless.The system automatically analyzes and calculates through the built-in stripe rust data model, which can be widely used in agricultural production.

2.Wheat stripe rust monitoring instrument features:

1.Collector: It adopts industrial-grade processing chip and ABS shell, which is light, strong and beautiful.It has a 7-inch LCD screen and is suitable for various harsh environments.

2.It has the function of external USB storage expansion.

3.Automatically analyze stripe rust infection data and automatically draw stripe rust infection curve and microclimate environment data curve.

4.Prediction model: According to the growth characteristics of different crops and pathogen data, corresponding prediction models can be established to monitor and warn of the trend of major crop diseases;

5.Disease data: It has historical data backup and export functions, and can be displayed in a variety of ways such as trend charts and bar charts.

6.Multiple viewing modes, supporting sharing of stripe rust analysis data via Web/App/WeChat public account, etc.

7.Equipped with GPS positioning module, it can upload location information in real time.

8.Collect data regularly and upload monitoring information automatically.

9.4G wireless transmission, breakpoint resume.

10.Solar power supply system.Super long battery life.

3.Wheat stripe rust monitoring instrument sensor parameters

1.Air temperature: -30～70℃, accuracy: ±0.3℃

2.Air humidity: 0~100%, accuracy: ±3%

3.Wind speed: 0~45m/s, accuracy: ±1m/s

4.Wind direction: 0-360° Accuracy: ±1°

5.Rainfall: 0-50 mm/hour, error: ±4%

6.Atmospheric pressure: 50-110Kpa, accuracy: 15 digits
