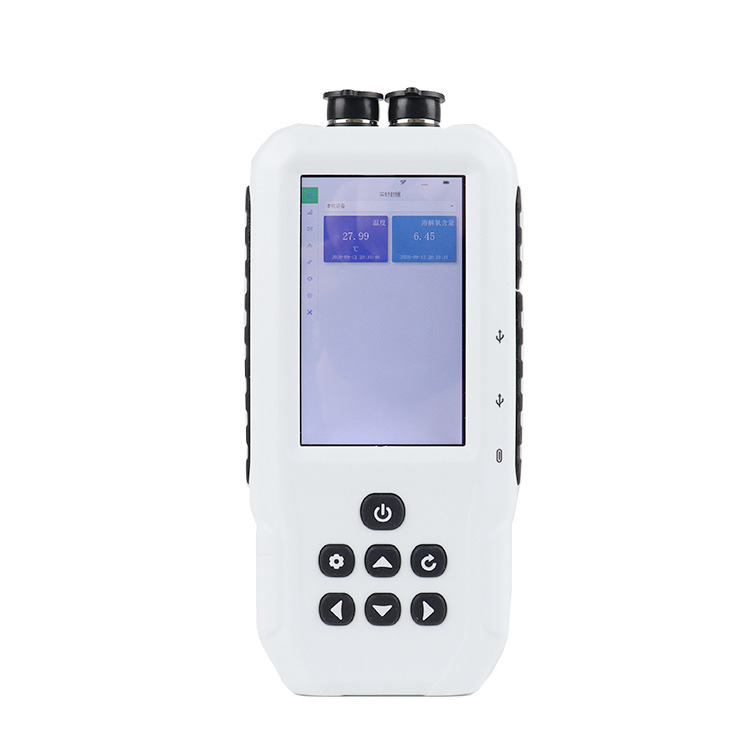

Weather Meter
Model：FT-QS1
Brand：fengtu
Get a Free Quote
Product details
1.Weather Meter technical parameters
| Charging input voltage | 4.5V-5.5V |
| Charging current | ＜2A |
| screen size | 3.5 inches |
| screen resolution | 480*800☆ |
| screen interface | MIPI DSI☆ |
| USB interface | 2 (Supports external expansion of mouse, keyboard, 4G, etc.)☆ |
| Type-C | 1 (Supports external expansion of mouse, keyboard, 4G, etc.)☆ |
| RS485 | 2 (Supports Modbus, json, asc input, etc.) |
| External sensor supply voltage | 12V |
| External sensor supply current | 1A |
| operating system | ftiot (based on Linux-5.4)☆ |
| CPU | 2*Cotex-A7，650Mhz☆ |
| RAM | 512M DDR3☆ |
| Flash | 8G-64G |
| OpenGL | ES 2.0☆ |
| Wifi | support |
| 4G | Optional |
| button | support |
| capacitive touch screen | support |
| software architecture | B/S☆ |
| web access | Support☆ |
| MTP mode | Support☆ |
| Multiple terminal login | Support☆ |
| IPv6 | Support☆ |
| Sensor communication method | RS485、TCP、UDP、Http☆ |
| Data forwarding method | RS485、TCP、UDP、Http☆ |
| Remote SSH | Support☆ |
| remote debugging | Support☆ |

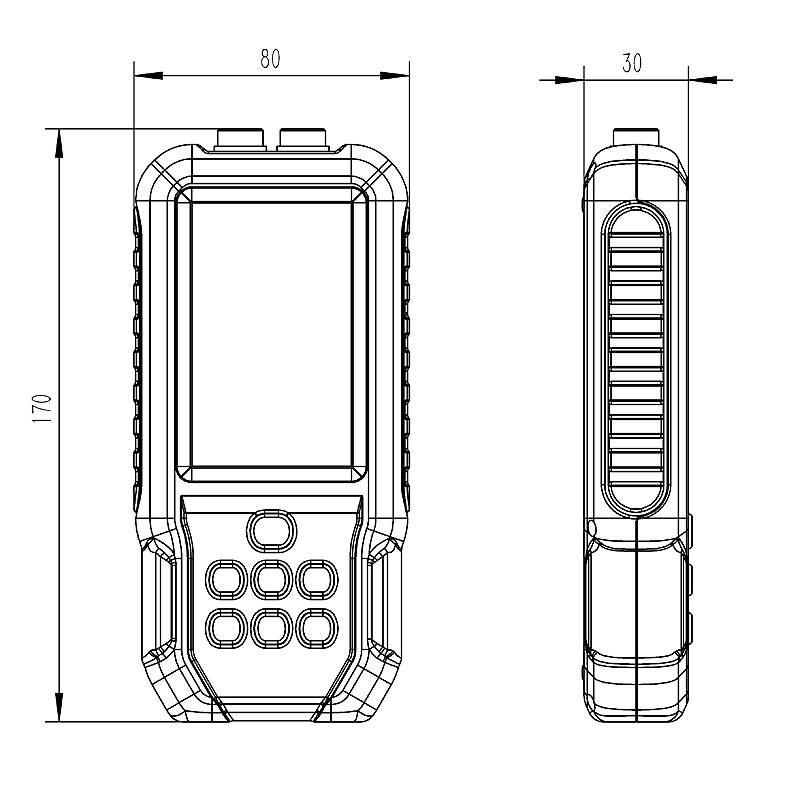

2.Weather Meter product size chart
