The Automatic Soil Monitoring System enables simultaneous measurement of soil moisture at multiple points, providing an effective means to obtain comprehensive and accurate soil moisture information.
The system achieves the goal of simultaneous measurement of soil moisture at multiple points by deploying soil moisture sensors at different locations. These sensors can penetrate different depths of the soil, such as the surface layer and deeper soil layers, to obtain soil volumetric water content data at different levels. In practical applications, the placement of sensors is not arbitrary but is carefully planned based on factors such as monitoring objectives, regional characteristics, and soil types. For example, in a farmland, to comprehensively understand the soil moisture status at different depths of crop roots, sensors are strategically installed at different plots and depths, enabling three-dimensional and comprehensive soil moisture information for the entire farmland.

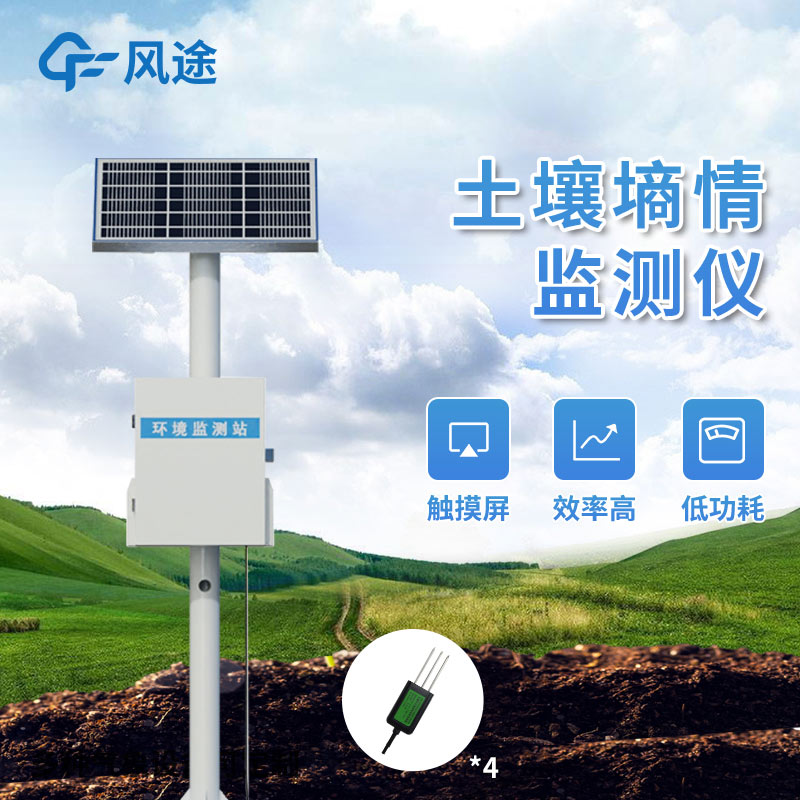

The FT-TS200 Automatic Soil Monitoring System is a highly integrated, low-power, and fast-installable high-precision automatic weather observation device launched by Fengtu.
It is primarily designed to monitor soil moisture content and soil temperature. Through moisture sensors and temperature sensors, it measures the soil's volumetric water content and temperature values. The soil moisture measurement range is 0-100% with a precision of ±3%, while the soil temperature measurement range is -30°C to 70°C with a measurement accuracy of ±0.3°C. It can be expanded with meteorological sensors such as soil electrical conductivity, soil pH, and air temperature according to user needs. Using wired, GPRS, Bluetooth, and other transmission methods, it requires no debugging and can be quickly deployed, widely used in agriculture, forestry, geology, universities, scientific research, and other fields. It also features a solar panel top embedded design, a low-temperature 7-inch Android screen, SMS alarm functions, and a protective case made of stainless steel material, which is corrosion-resistant, oxidation-resistant, and has an IP66 waterproof rating.
