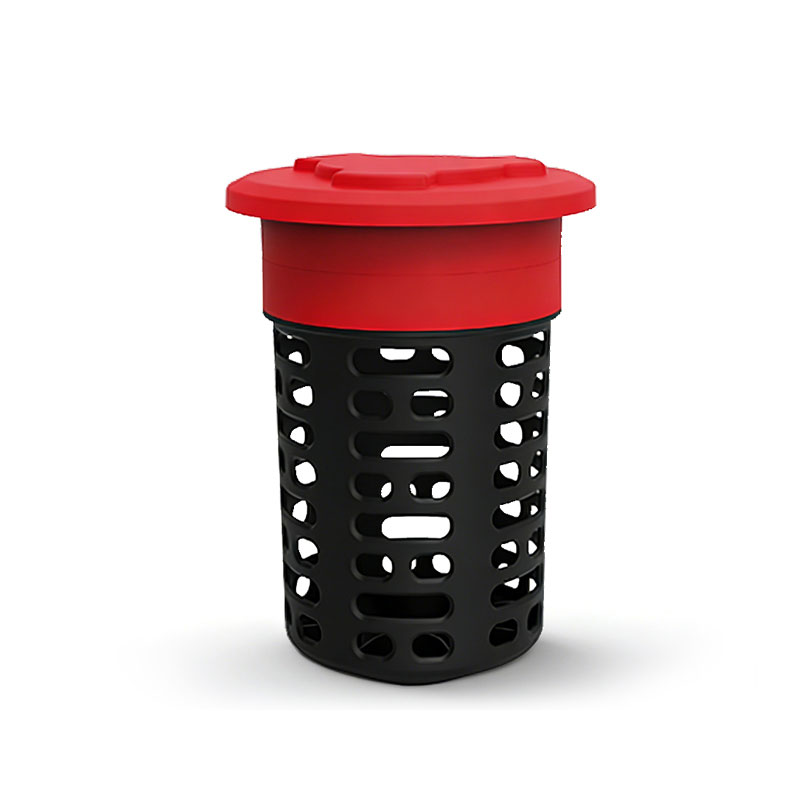

Termite Baiting Systems

1、Termite Baiting Systems Product Applications

Termite Baiting Systems can monitor termites and give early warning in time, which is suitable for reservoirs, embankments, soil buildings and ant source areas.This product provides real-time monitoring of termite activity, enabling early warning and precise detection.  It also records and analyzes data, supports remote monitoring, allowing managers to stay informed at all times.  Furthermore, it can be used to evaluate the effectiveness of control measures, providing strong support for scientific termite control. It is widely used in water conservancy dams, building construction, historical building preservation, and landscaping.

2、Termite Baiting Systems Product Features

This system utilizes a comprehensive approach combining loop technology, proprietary network communication technology, and internet technology, resulting in a highly sensitive termite monitoring and early warning system.

Unlike traditional monitoring devices that require manual inspection, this system features non-invasive automatic termite detection, automatically uploading detection results daily.  The backend management platform immediately displays the detection results.

The monitoring accuracy rate exceeds 95%.

All components are modular in design, allowing for independent operation and easy replacement of individual parts during operation.

The monitoring device's casing and internal frame are made of a composite resin-nylon material, and the sensing electronic module is sealed to IP68 standards.  This provides excellent corrosion resistance, ensuring reliable operation in various soil environments, including humid and acidic conditions.

3、Termite Baiting Systems System Components

The system consists of several parts: a monitoring device housing module, a lure and triggering module, a signal acquisition module, an information processing and transmission module, a database, PC-based management software, and a WeChat mini-program.

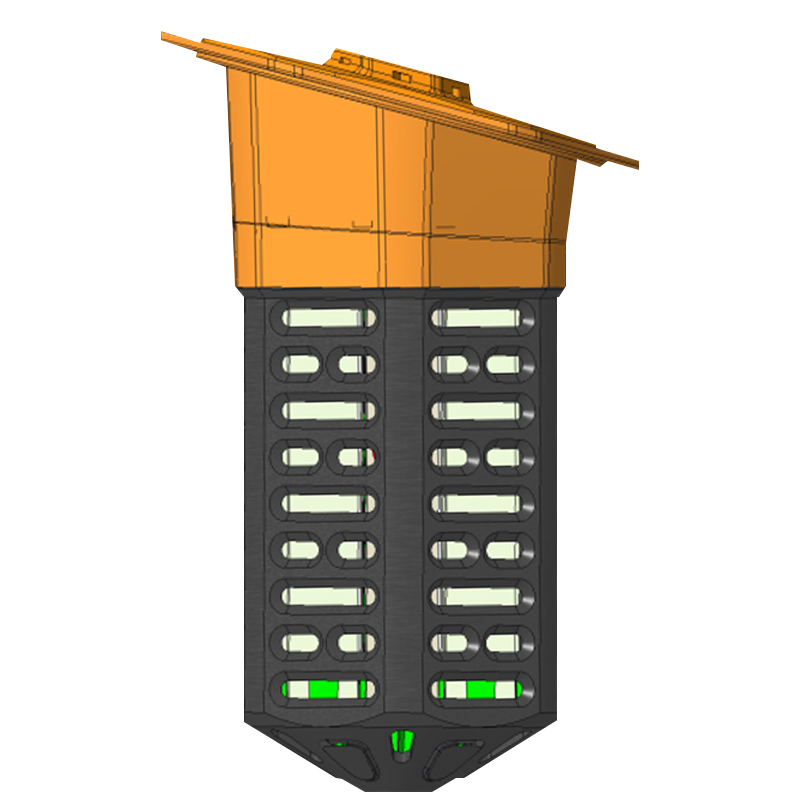

4、Termite Baiting Systems Device Analysis

Information Box: IP68 rated encapsulated circuit board

Information Stick: Termite information collection wood made from pine wood.

Carbon Wire: Waterproof carbon material coated onto the information stick. When termites gnaw on the wood, they corrode the information stick, triggering an alarm.

5、Termite Baiting Systems Technical Specifications

Communication Module: LoRa

Dimensions: 14cm x 14cm x 22cm

Inner Core Material: Dried pine wood, drying grade 1, 12 pieces of pine wood per device

Outer Casing Material: Anti-aging and environmentally friendly material, top cover with locking function and anti-theft design

Operating Temperature: -20°C to 80°C

Operating Humidity: >80%

Monitoring and Alarm Accuracy Rate: ≥95%

Monitoring False Alarm Rate: <5%

Outer Casing UV Aging Resistance: ≥Grade 4

Outer Casing Tensile Strength: ≥80MPa

Outer Casing Bending Strength: ≥100MPa

Outer Casing Impact Strength: ≥15KJ/㎡

Protection Rating: IP68

Battery Life: ≥5 years
