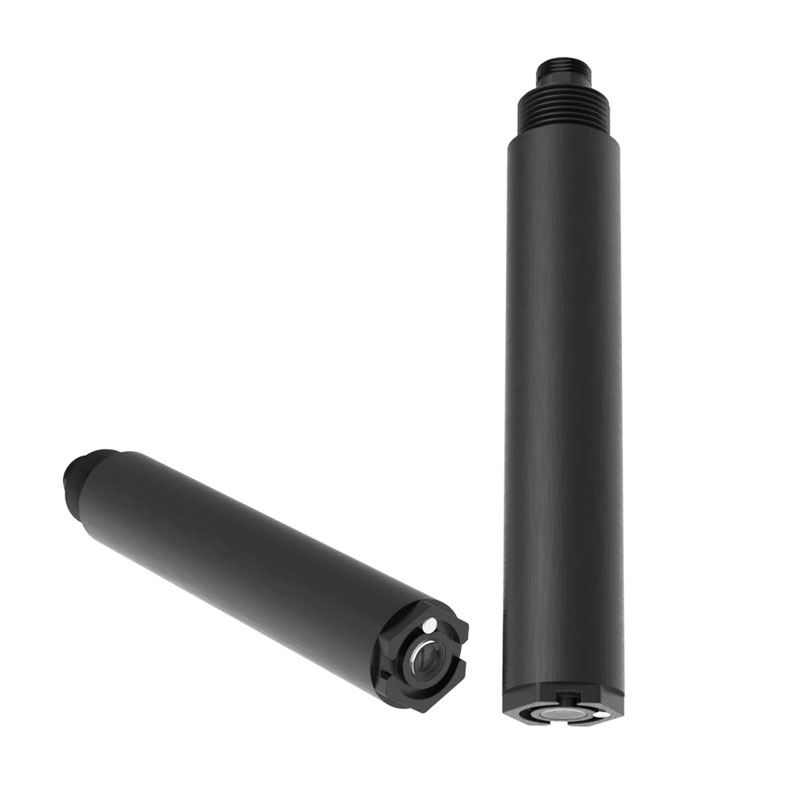

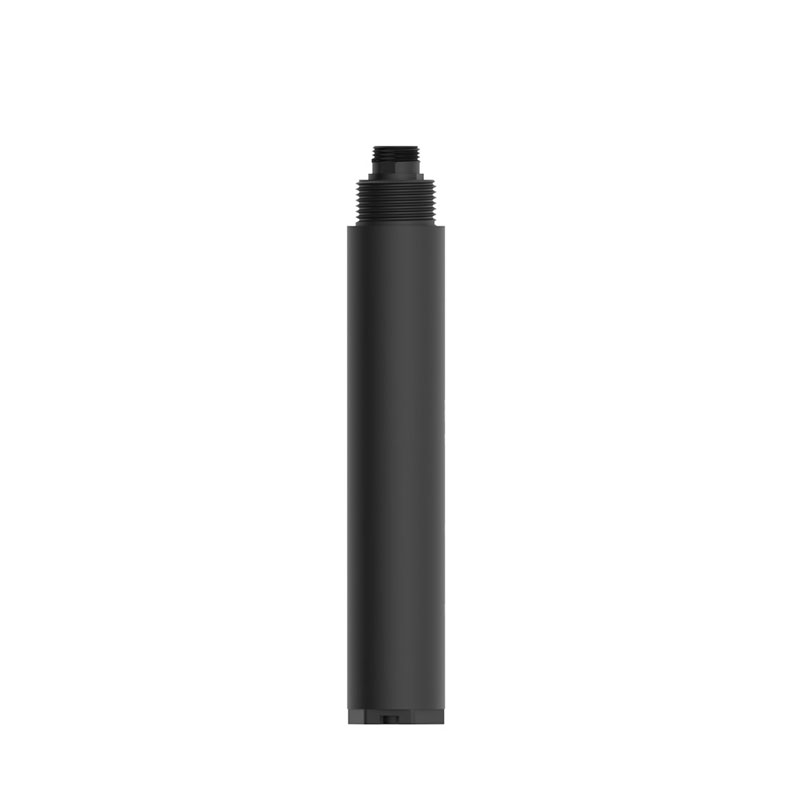

Water transparency sensor

one.Water transparency sensor application environment description

Water transparency sensor adopts the scattered light detection technology for online measurement, and is applied to the transparency monitoring of surface water, river, black and smelly water, aquaculture water, etc.Measures transparency in water using the scattering or absorption properties of light. It has high sensitivity, fast response and real-time monitoring capabilities, and is widely used in fields such as water quality monitoring and sewage treatment.

Signal output: RS485 (MODBUS-RTU).

Infrared LED light source, strong anti-interference ability.

Internal signal isolation technology, strong interference resistance.

Good reproducibility, thermal stability, low drift, small size, fast response

Easy and simple installation, 3/4NPT pipe thread, convenient for submersible installation or installation in pipes and tanks

Stable performance and long service life

IP68 waterproof standard

two. Water transparency sensor technical performance and specifications

1.Technical parameters

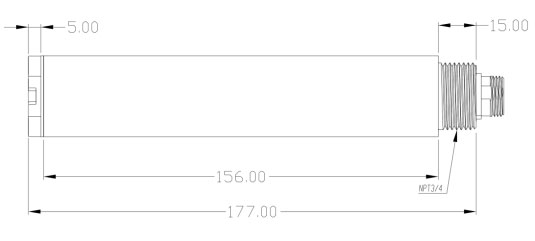

2.Water transparency sensor dimension diagram

three. Water transparency sensor installation and electrical connections

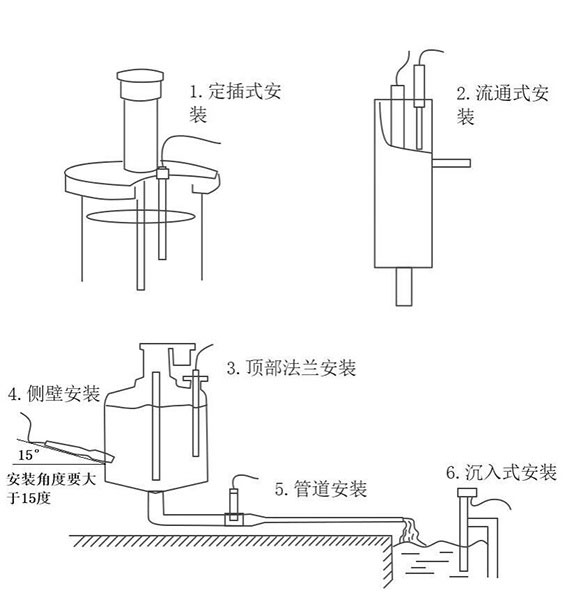

1.Installation

Note: The sensor cannot be installed upside down or horizontally, and must be installed at an angle of at least 15 degrees.

2. Electrical installation

The cable is a 5-core shielded wire, wire sequence definition: brown - power cord (12~24VDC)

Black - Ground (GND)

Blue-485A Green-485B

Yellow-4-20mA current output (can be left floating if not used)

The wiring sequence should be carefully checked before powering on to avoid unnecessary losses caused by wiring errors.

Four. Water transparency sensor maintenance and care

1.Use and maintenance

Conventional electrodes require periodic cleaning and calibration, and the maintenance cycle is determined by the customer based on his or her own working conditions. Conventional electrode cleaning method: use a soft brush to remove attachments (be careful to avoid scratching the electrode surface), then clean with distilled water, and then perform calibration operations.
