Soil moisture refers to the amount of water content in the crop root zone soil, which is directly related to crop growth and harvest. In agricultural production, soil moisture affects field climate, soil aeration, and nutrient decomposition, and is also one of the important conditions for soil microbial activity and crop growth and development. Traditional soil moisture monitoring relies entirely on manual field surveys, which is not only inefficient and unable to grasp relevant conditions in a timely manner, but also relies on experience estimation with limited accuracy. Especially when encountering major meteorological disasters such as low temperatures and droughts, technical measures taken are often delayed due to slow prediction.
Soil moisture monitoring is a key link in promoting new water-saving agricultural technologies and is also the core technology for achieving scientific and effective water use. By vigorously carrying out soil moisture and drought monitoring, combined with crop water requirements and local water resources conditions, scientific and reasonable irrigation measures can be formulated to provide scientific basis for water-saving irrigation and drought prevention and resistance.

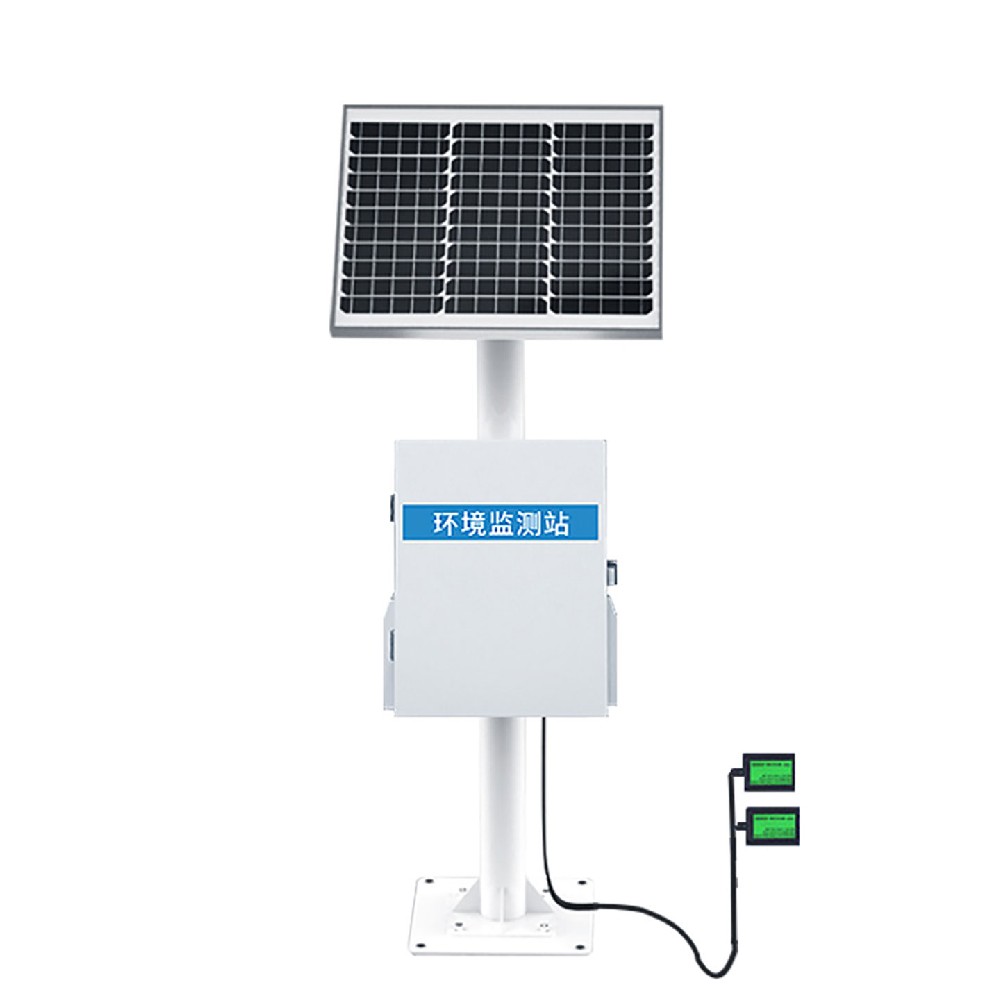

FT-TS600 Soil Moisture Monitor
The FT-TS600 soil moisture monitoring station is equipped with six layers of soil temperature and humidity sensors, capable of simultaneously monitoring soil conditions at different depths. The device adopts a solar panel top cover embedded design, which improves photoelectric conversion efficiency while increasing wind resistance level. The charge controller uses MPPT automatic power point tracking technology, increasing efficiency by 20%. The device also has an SMS alarm function, which automatically sends alarm messages to designated mobile phones when monitoring data exceeds limits.
Main Technical Parameters
Soil moisture measurement range: 0-100%, accuracy up to ±3%
Soil temperature measurement range: -30℃ to +70℃, measurement accuracy ±0.3℃
Optional sensors: soil conductivity, soil pH, air temperature, air humidity, solar radiation, rainfall and other meteorological sensors
The device supports multiple transmission methods including wired, GPRS, and Bluetooth, requiring no debugging and enabling quick deployment. The supporting cloud platform adopts CS architecture software, supporting direct observation via mobile phones and PC browsers without additional software installation. The platform supports real-time data display and historical data display dashboards, with data curve analysis and table export capabilities.
The FT-TS600 Soil Moisture Monitor is extremely convenient to deploy, with one person able to complete deployment in less than 30 minutes. This enables it to be widely used in agriculture, forestry, geology, universities, scientific research and other fields, providing important technical data for modern agricultural development.
