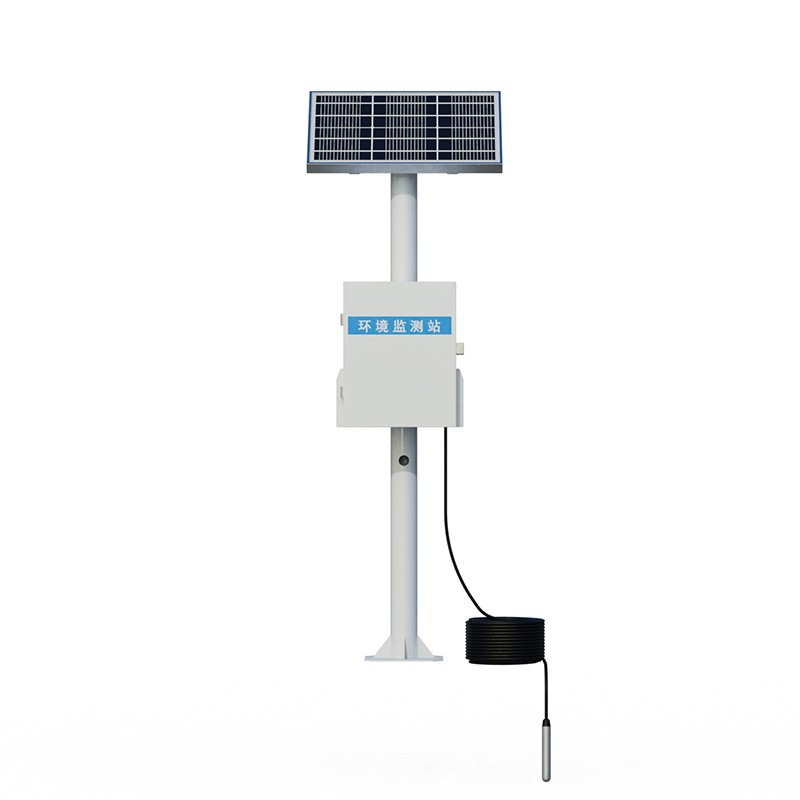

Water Level Measurement Features Triple-Layer Lightning Protection and High-Tensile Steel-Wire Cabling

Water Level Measurement Based on a hermetically sealed sensor chip and a unibody molded structure, this device incorporates a triple-layer lightning protection system and high-tensile steel-wire cabling. It is ideally suited for water-level measurement in deep groundwater wells, mine shafts, and geothermal wells, featuring an IP66-rated protective enclosure.

Water Level Measurement is a water-level measurement device specifically designed for applications in deep wells, mines, and geothermal boreholes. The core of the device lies in its built-in, ultra-high-pressure-resistant, hermetically sealed sensor chip. This chip has been specially optimized for the demanding environment of deep underground wells, enabling it to withstand both hydrostatic pressure and formation pressure at depths of several kilometers while maintaining stable, long-term measurement performance. The sensor utilizes a unibody molded structure, encapsulating the sensitive elements and signal conditioning circuitry within a single housing; this design mitigates the risk of seal failure often associated with traditional split-structure designs.

The triple-layer lightning protection system serves as a critical safeguard for the device's stable operation in complex outdoor electromagnetic environments. The first stage of protection targets the power supply lines, employing a combination of varistors and gas discharge tubes to suppress surge overvoltages induced by lightning strikes. The second stage focuses on the signal transmission lines, utilizing transient suppression diodes to clamp both differential-mode and common-mode interference to safe voltage levels. The third stage involves grounding and shielding treatments, ensuring that lightning currents are rapidly and safely discharged into the earth. These three layers of protection work in concert to effectively reduce the probability of damage to the equipment caused by both induced lightning surges and direct lightning strikes.

For signal transmission, the device employs a high-tensile steel-wire cable. The internal conductors are encased within a high-strength braided steel-wire layer, which serves the dual function of transmitting signals and bearing the longitudinal tensile load generated by the cable's own weight when suspended in deep wells. This structural design prevents issues—such as core-wire breakage or signal attenuation caused by stretching—that often plague traditional cables during long-distance vertical suspension. Consequently, it ensures that measurement signals are transmitted to ground-level displays or data acquisition terminals in real-time, with high precision and stability.

The device's housing consists of a stainless steel protective enclosure, offering excellent corrosion resistance and anti-oxidation properties. Rated at IP66, the enclosure effectively prevents the ingress of dust and is capable of withstanding high-pressure water jets. Critical components are constructed from corrosion-resistant stainless steel, enabling the device to withstand corrosive aquatic environments characterized by high salinity, sulfur content, or acidic and alkaline conditions. Structurally, the unit incorporates multiple layers of protection—including sealed housing, waterproof cable connectors, and internal potting—to enhance its operational reliability in environments characterized by high humidity, dust, and severe vibration.

In terms of application, this device is primarily utilized for the dynamic monitoring of water levels in deep groundwater wells, the surveillance of water inflow during mining operations, and the monitoring of water levels in geothermal reinjection wells. The collected measurement data serves as a vital resource for water resource assessment, mine safety early warning systems, and the sustainable development of geothermal resources. Given that certain operational environments may contain flammable or explosive gases (such as those found in underground coal mines), the device's circuitry is designed to comply with explosion-proof standards, thereby preventing safety incidents triggered by electrical sparks. Through high-precision water level monitoring and real-time data transmission, users can track water level trends from a centralized control center, providing a solid basis for production scheduling and safety-related decision-making.
