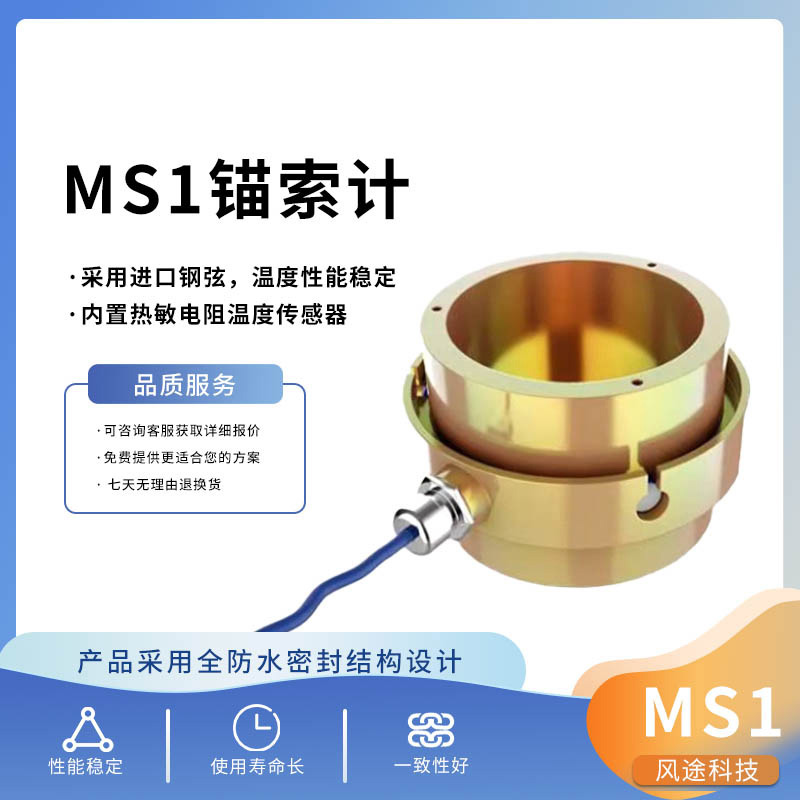

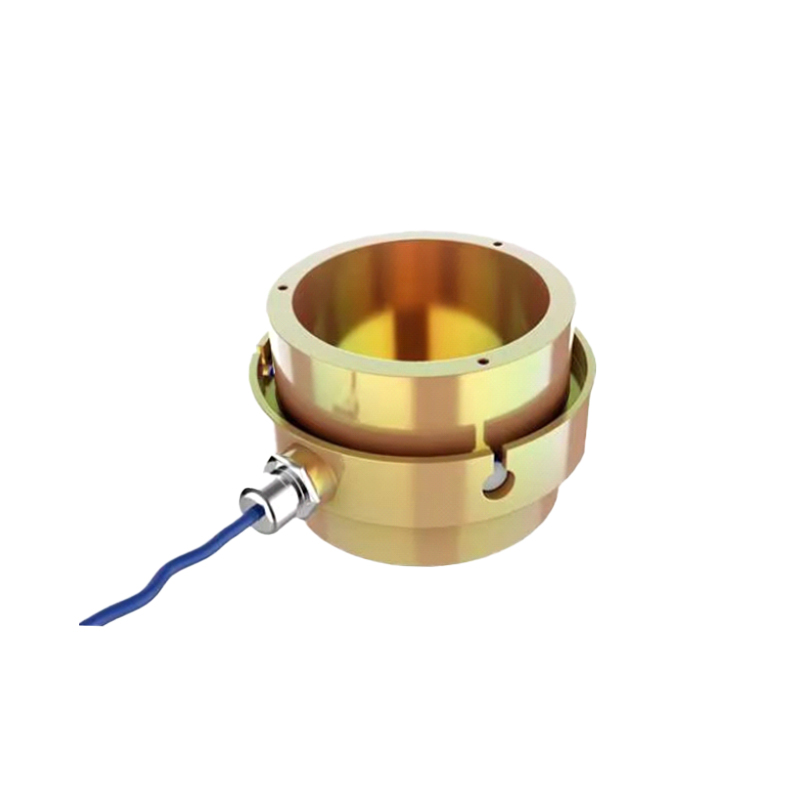

Anchor cable dynamometer

1.Anchor cable dynamometer product overview

Anchor cable dynamometer uses a special strain gauge as a sensing component for long-term monitoring of the pressure exerted by prestressed anchor cables on rock mass or buildings.This series of Anchor cable dynamometer is mainly used to monitor the stress changes of anchor cables and anchor rods in geotechnical engineering, civil engineering structures and underground caverns. Anchor cable dynamometer uses imported high-quality steel strings, advanced manufacturing and installation methods, and a fully waterproof sealing structure, with high sensitivity, high reliability and long-term stability.

2. Application scenarios of anchor cable dynamometer

Bridges, tunnels, rail transit, water conservancy

3. Anchor cable dynamometer product features

1. Imported steel strings, stable temperature performance and long service life

2. Built-in thermistor temperature sensor for easy temperature compensation

3. High resolution, strong anti-interference ability, and sensitive response to concentrated loads

4. Fully waterproof and sealed structure design

4. Anchor cable dynamometer technical parameters

Range: 500kN, 1000kN, 2000kN, 3000kN, 4000kN

Resolution: 0.1%FS

Temperature range: -20℃～+70℃

Temperature measurement accuracy: ±0.5℃

Note: Anchor cable dynamometer is not fixed, each model has it, it is determined according to the specifications of the anchor cable.
