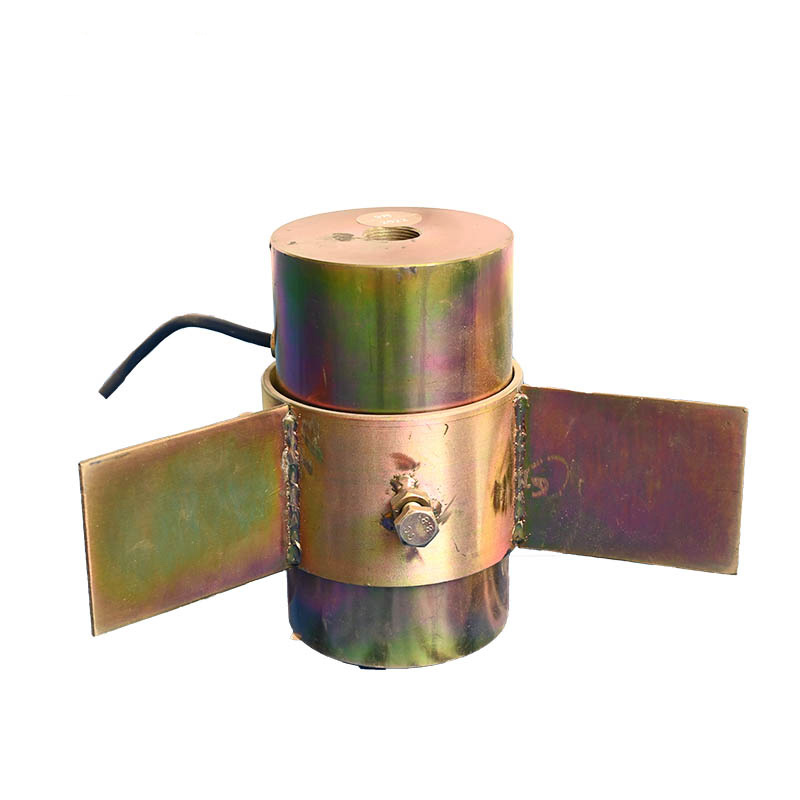

Axial force meter

1.Axial force meter product introduction

Axial force meter is an instrument that uses the vibration frequency of the steel string to measure the axial force of the support while measuring the temperature at the installation location.This series of Axial force meter, also known as reaction meter, is a vibrating string force sensor with the advantages of high resolution, strong anti-interference performance, sensitive response to concentrated loads, stable performance, etc. It can measure the reaction force of the foundation on the superstructure, the axial force of the steel support and the load during the static pile test for a long time. If a temperature sensor is installed, the temperature of the installation point can be measured synchronously.

2. Application scenarios of axial force meter

Bridges, tunnels, rail transit, buildings, roads

3. Features of Axial force meter

1. Imported steel strings, stable temperature performance and long service life

2. Built-in temperature sensor for easy temperature compensation

3. The main components are treated with special surface treatment technology, suitable for use in harsh environments

4. High resolution, strong anti-interference ability, and sensitive response to concentrated loads

4. Axial force meter technical parameters

Range: 1000kN, 2000kN, 3000kN, 4000kN, 5000kN, 6000kN

Resolution: 0.1%FS

Working temperature: -20℃～+60℃

Temperature measurement accuracy: ±0.5℃
