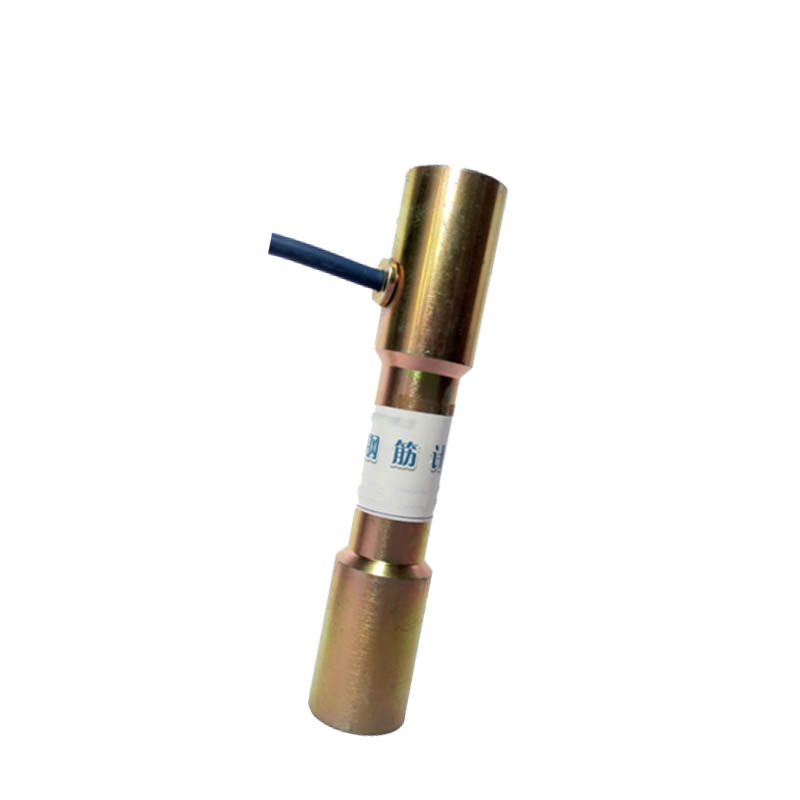

Rebar stress meter

1.Rebar stress meter product overview

Rebar stress meter is an instrument used to monitor stress changes in steel bars in concrete or other structures. It is also used to measure stress in anchor rods.The vibrating wire rebar stress meter is also called a steel bar stress meter. It is suitable for stress monitoring of steel bars and anchors in concrete structures. It can be equipped with supporting accessories to form an anchor dynamometer and bedrock stress meter. It is buried in concrete engineering structures such as various building foundations, continuous walls, tunnel linings, bridges, slopes, docks, shipyards, gates, etc.

2. Application scenarios of Rebar stress meter

Bridges, tunnels, rail transit, buildings, roads

3. Features of Rebar stress meter

1. Imported steel strings are used, with stable temperature performance, long service life and good product consistency

2. Built-in analog temperature sensor for easy temperature compensation

3. Using standard hydraulic cables, the system is more reliable

4. Rebar stress meter technical parameters

Range: 0~75kN, 0~105kN, 0~136kN, 0~160kN

Measurement accuracy: ±1% FS

Working temperature: -20℃～+70℃

Temperature measurement accuracy: ±0.5℃

Insulation resistance: ≥50MΩ

Note: Select the model according to the diameter of the steel bar
