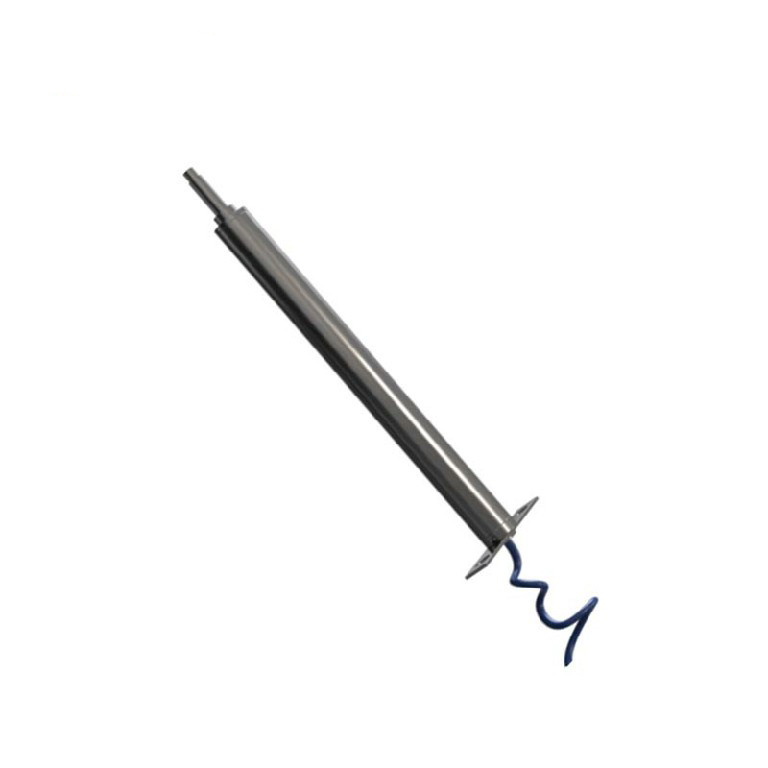

Vibrating Wire Crackmeter

1.Product Introduction of Vibrating Wire Crackmeter

Vibrating Wire Crackmeter is designed to measure the displacement of cracks and joints in buildings, bridges, dams, concrete, rock, soil, etc.This series of Vibrating Wire Crackmeter is suitable for long-term monitoring of the opening and closing degree (deformation) of expansion joints of artificial structures or other concrete structures. It can measure the settlement of deep soil layers by adding corresponding accessories.

2. Application Scenarios of Vibrating Wire Crackmeter

Bridges, tunnels, rail transit, water conservancy, highways

3. Features of Vibrating Wire Crackmeter

1. Product performance is stable and reliability is high

2. High sensitivity

3. All stainless steel structure, high waterproof performance

4. Vibrating Wire Crackmeter Technical Parameters

Measuring range: 50mm, 100mm, 200mm, 300mm, 400mm, 500mm

Waterproof sealing: 0.5MPa

Output frequency band range: 800Hz~3500Hz

Resolution: ≤0.025%FS
