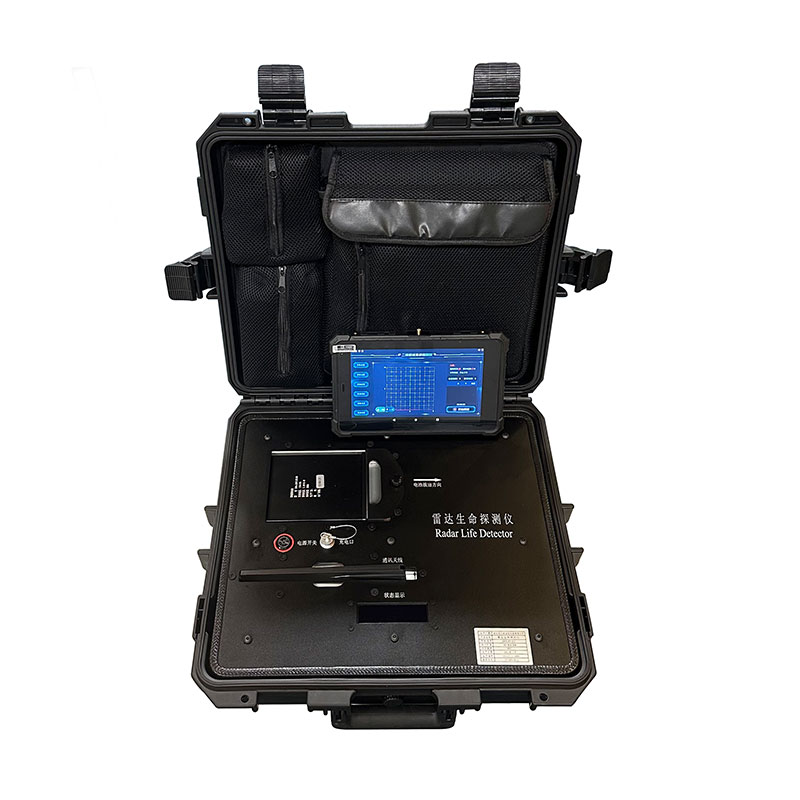

Radar life detector

1.Overall requirements for Radar life detector

Radar life detector is a rescue equipment designed for earthquake, avalanche, building collapse and other disaster relief sites.

1.1 Comply with the "Radar life detector for Fire Protection" (XF 3010-2020) standard requirements*

1.2 Used to detect life in free space and penetrate non-metallic media.It is mainly used to detect and search human survivors buried in collapsed buildings, ruins, soil, etc.or to detect and search human life in smoke, fog and other environments..*

2.Radar life detector Parameter Performance Requirements

1.Detection type: It has two-dimensional positioning and detection function, can accurately locate the two-dimensional coordinates of the target, multi-dimensional display, and can obtain the three-dimensional coordinates of the living body.It has three-dimensional general imaging and three-dimensional posture recognition functions.▲

2.Detection distance: After penetrating the 65cm brick wall, ≥26m of stationary life and ≥36m of moving life can be detected.

3.Detection display: Automatically determine whether there are living organisms in the detection area, and display the detected stationary targets and moving targets in different graphics.

4.Detection opening angle: ≥120°.▲

5.Remote control distance: The wireless communication distance between the radar host and the control terminal in an open environment is ≥150 meters.▲

6.The detector has a multi-object detection function, which can detect the movement and breathing of ≥3 living organisms at the same time, and display it on the display control terminal.

7.Detection accuracy: radar detection accuracy ≥95%

8.Mode selection: You can select search modes for scenes such as air, ruins, and walls to achieve optimized detection.

9.Replaceable battery: The battery life of a single battery is not less than 12 hours, and the number of batteries is 2.

10.Working temperature: -20℃--+60℃.

11.The weight of the radar main unit (including battery) is ≤7.7kg.▲

12.Protection level ≥IP67.▲

13.The detector controls the terminal screen of the tablet ≥8 inches, and can view the data collected by the device in real time.▲

3.Other requirements for Radar life detector

1.Provide a nationally recognized third-party testing report at the provincial level (including) or above (the test report has CMA or CNAS mark) during bidding, and the test report reflects the above technical indicators with "▲".
