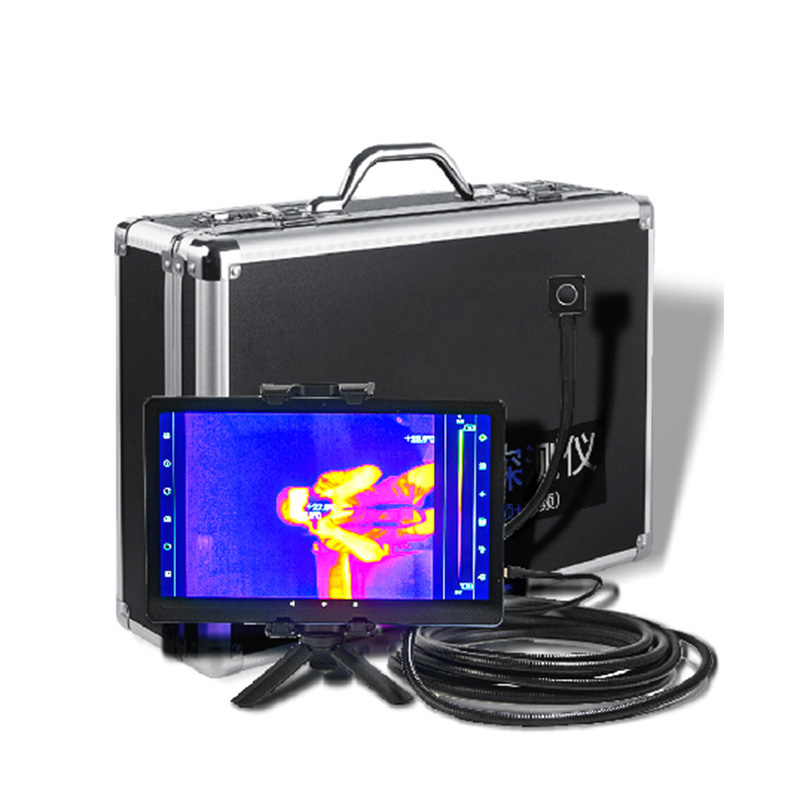

Thermal Imaging Infrared Life Detector

Model：FT-860T

Brand：fengtu

Thermal Imaging Infrared Life Detector enables firefighters to intuitively understand the temperature distribution and personnel location of fire sites by observing infrared thermal images.

Get a Free Quote

Product details

Thermal Imaging Infrared Life Detector detailed product introduction and technical parameters

Thermal Imaging Infrared Life Detector enables firefighters to intuitively understand the temperature distribution and personnel location of fire sites by observing infrared thermal images.

Thermal Imaging Infrared Life Detector basic configuration
Implementation standards	Implement GB 4943.1-2022 "General Technical Specifications for Pass-through Metal Detection Doors"	Key parameters
☆☆☆Performance	6 graphic modes can take photos and videos for easy summary and analysis; it can reach into small gaps.	☆☆☆
resolution	10.36-inch incell full screen 2000*1200 resolution;
Host performance	8-core graphics processing chip
Memory	128GB
Snake length	5
Pickup sensitivity	32dB
Working wavelength	8-14um
Frame rate	25HZ
Temperature measurement range	-15°C -- 600°C
Temperature measurement accuracy	±2°C or ±2% of reading
Battery	6000mA lithium battery;
working temperature	-10°C -- 75°C
Storage temperature	-45°C -- 85°C
Applicable aspects	Fire rescue, military investigation, security search and other tasks

This paper addresses：https://www.fengtusz.com/Life-Detector-Device/Thermal-Imaging-Infrared-Life-Detector.html
