Wheat scab monitor

1.Wheat scab monitor product introduction:

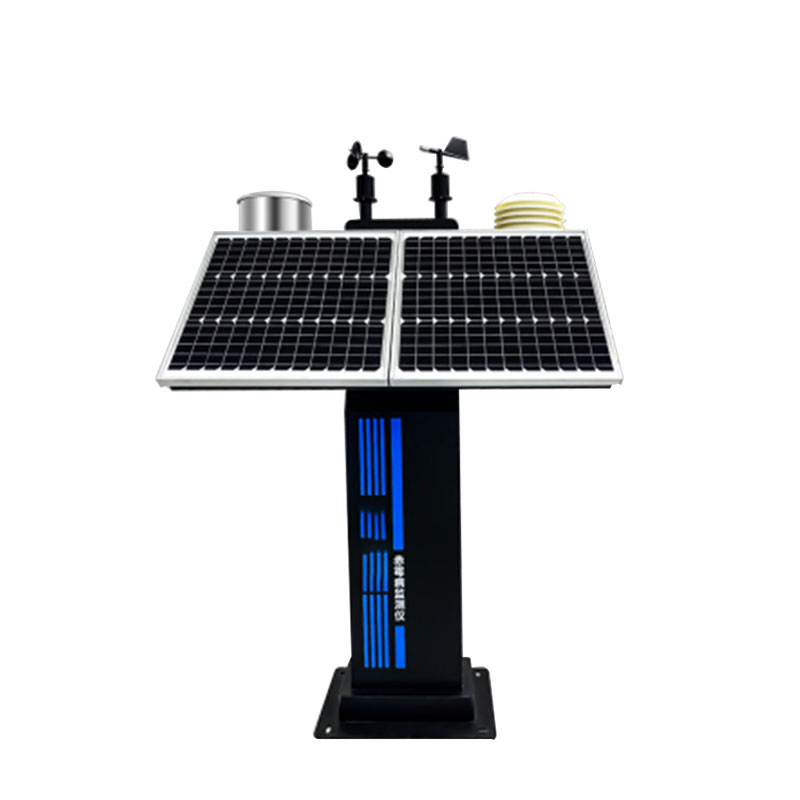

Wheat scab monitor is a new type of SCAB monitoring equipment which integrates meteorological monitoring and intelligent spore capture and microscopic imaging.The real-time monitoring and early warning instrument for crop diseases is an unattended meteorological collection system that integrates meteorological data collection, storage, transmission and management.Wheat scab monitor conducts all-weather on-site monitoring of factors such as wind speed, wind direction, rainfall, air temperature, air humidity, and atmospheric pressure.And it is transmitted to the platform for storage and analysis through 4G wireless.The system automatically analyzes and calculates through the built-in scab data model, which can be widely used in agricultural production.

2.Wheat scab monitor features:

1.Collector: It adopts industrial-grade processing chip and ABS shell, which is light, strong and beautiful.It has a 7-inch LCD screen and is suitable for various harsh environments.

2.It has the function of external USB storage expansion.

3.Automatically analyze the infection data of ergot disease and automatically draw the infection curve of ergot disease and the microclimate environment data curve.

4.Prediction model: According to the growth characteristics of different crops and pathogen data, corresponding prediction models can be established to monitor and warn of the trend of major crop diseases;

5.Disease data: It has historical data backup and export functions, and can be displayed in a variety of ways such as trend charts and bar charts.

6.Multiple viewing modes, supporting sharing of ergot analysis data via Web/App/WeChat public account, etc.

7.Equipped with GPS positioning module, it can upload location information in real time.

8.Collect data regularly and upload monitoring information automatically.

9.4G wireless transmission, breakpoint resume.

10.Solar power supply system.Super long battery life.

3.Wheat scab monitor sensor parameters

1.Air temperature: -30～70℃, accuracy: ±0.3℃

2.Air humidity: 0~100%, accuracy: ±3%

3.Wind speed: 0~45m/s, accuracy: ±1m/s

4.Wind direction: 0-360° Accuracy: ±1°

5.Rainfall: 0-50 mm/hour, error: ±4%

6.Atmospheric pressure: 50-110Kpa, accuracy: 15 digits
