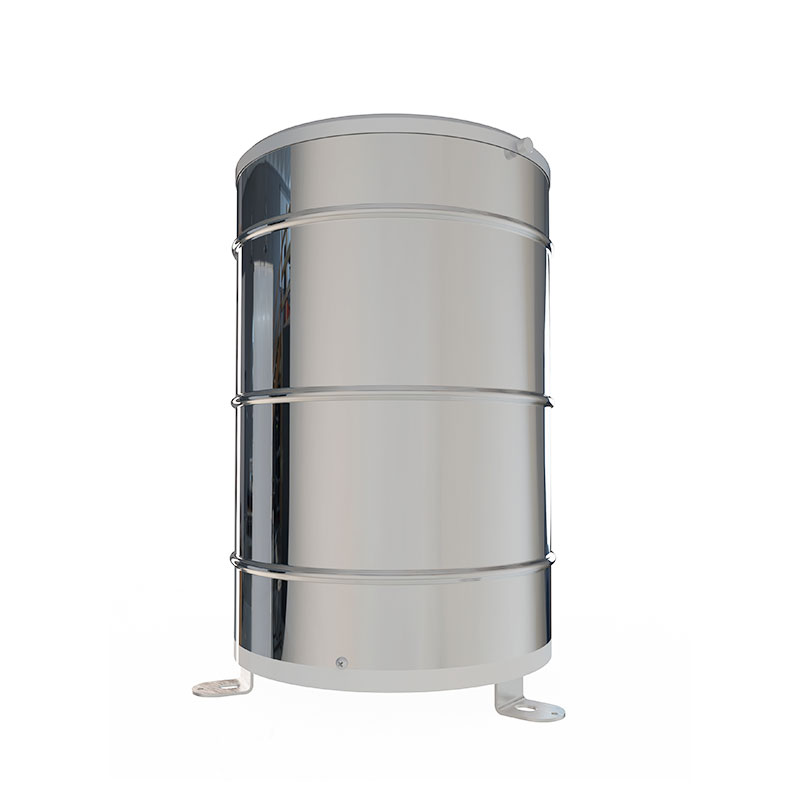

Tipping Bucket Rain Gauge

Model：YL1

Brand：fengtu

Tipping Bucket Rain Gauge is a commonly used rainfall measuring device. It uses the tipping bucket principle to monitor rainfall in real time and provide accurate measurement results.

Get a Free Quote

Product details

1.Tipping Bucket Rain Gauge Technical Indicators

Tipping Bucket Rain Gauge is a commonly used rainfall measuring device. It uses the tipping bucket principle to monitor rainfall in real time and provide accurate measurement results.

1.Power supply: DC12V

2.Power consumption: 0.02W

3.Working environment: 0~50℃

4.Communication interface: RS485

5.Working current: 2mA DC12V

6.Shortest data interval: 0.5S

Tipping Bucket Rain Gauge Parameters

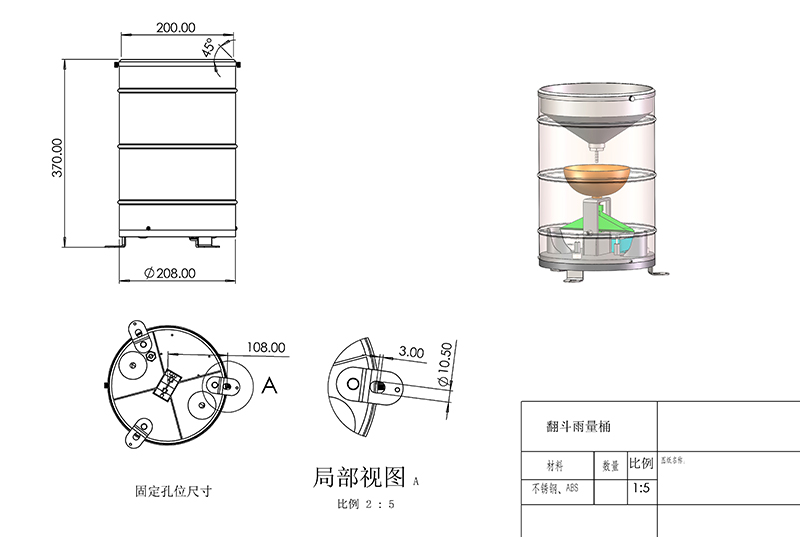

Rain gauge cylinder diameter	Φ200mm
Operating temperature	0～50℃
Operating humidity	<95% (no condensation)
error	≤±2%
Resolution	0.2mm
Rainfall intensity range	0mm～4mm/min, the maximum rainfall intensity allowed is 8mm/min
Heavy rain intensity range	0～10mm/min, the maximum rainfall intensity allowed is 15mm/min
Output method	Modbus485
