Water Level Measurement Devices

Water Level Measurement Devices are supporting equipment for hydrology, used for water level measurement and quickly providing accurate water level data.

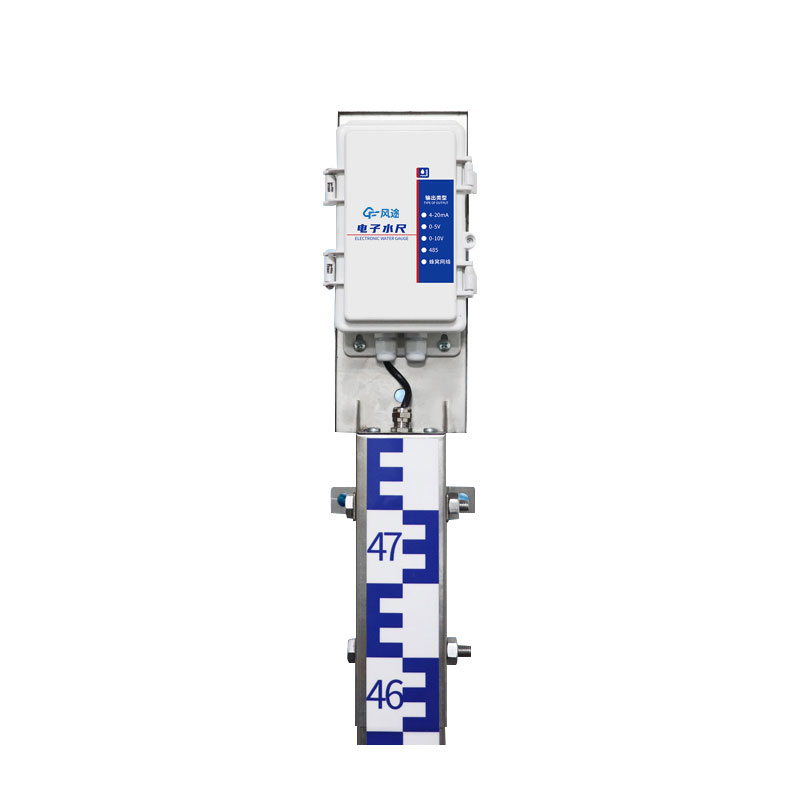

Water Level Measurement Devices : Main unit, water level gauge, collector, power supply system, pole

Working Principle of Water Level Measurement Devices: Utilizing the weak conductivity of water, using advanced processor chips as controllers, acquiring water level data through measuring electrodes, transmitting after CPU digital encoding, division, sampling, and digital processing, and then using wired or wireless communication technology to send water level data to the monitoring center or software, to play the role of real-time water level monitoring and early warning.

Power supply: Solar power supply, 30W, 20AH

Transmission mode: 2G wireless transmission, 4G optional

Installation method: wall mounted

Equipment accuracy 1cm (full range accuracy)

Resolution: 1cm

Unit section specification: 80cm

Measuring length: 80cm*3

Communication interface: RS485 as standard, 4G, 4-20ma, 0-5v, 0-10v as optional

Parameter configuration: Configuration tool configures specific parameters

Working modes: air height mode, water depth measurement mode, tilt measurement mode

Maximum power consumption: host maximum power consumption 1W, water gauge maximum power consumption 0.05W

Control card switch: RS485 has a relay output by default, which can be arbitrarily associated with alarm output or used for water level upper and lower limit control.

Installation hole size: 86.2mm

Mounting hole diameter: 10mm
