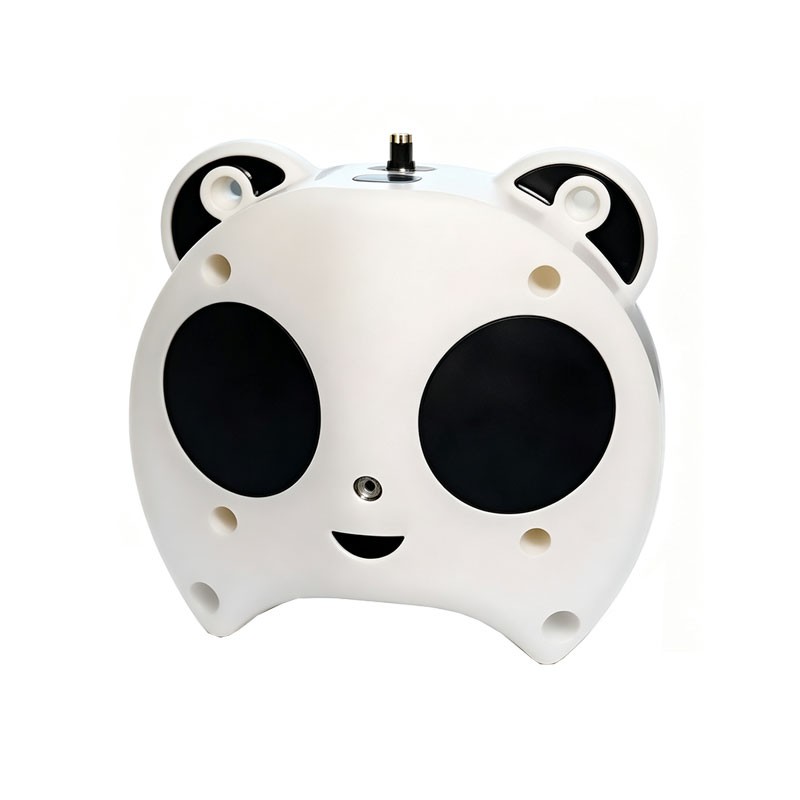

Horizontal Acoustic Doppler Current Profiler
Model：HADCP-1
Brand：fengtu
Get a Free QuoteRelated products
Product details
1、Horizontal Acoustic Doppler Current Profiler Product Introduction
Horizontal Acoustic Doppler Current Profiler continuously monitors the flow velocity across the entire cross-section by emitting acoustic waves, acquiring flow velocity profile data for the entire cross-section.Our independently developed Horizontal Acoustic Doppler Current Profiler is a domestically produced acoustic flow measurement device specifically designed for inland waterway flow monitoring, utilizing the 600kHz frequency band.
Based on mature acoustic Doppler flow measurement technology, the Horizontal Acoustic Doppler Current Profiler features an optimized design, compact structure, and easy installation and maintenance. It exhibits excellent performance in stability, data reliability, and environmental adaptability, making it an important device for hydrological monitoring and water resource management.
It is widely used in ecological flow monitoring, river hydrological stations, irrigation area water metering, and other scenarios.
2、Horizontal Acoustic Doppler Current Profiler Product Advantages
Domestic Substitution: The product is comparable to top international ADCP products and can directly replace them.
High Precision: Precision comparable to top international products.
High Reliability: Continuous operating time of at least 100 days.
Small Size: Significantly smaller than comparable international products.
Strong Compatibility: Compatible with similar product protocols.
Easy Operation: Can operate upon power-on/can be set to automatic operation.
High Cost-Effectiveness: Performance comparable to comparable international products, with a more competitive price.
3、Horizontal Acoustic Doppler Current Profiler Application Scenarios
River flow monitoring, year-round flow monitoring at hydrological stations, water volume measurement in irrigation canals, reservoir discharge/outflow monitoring, urban river water environment monitoring, and emergency hydrological patrols.
4、Horizontal Acoustic Doppler Current Profiler Technical parameters
| Composition | Technical Specifications | Parameters |
| Profile flow measurement | Operating frequency | 600kHz |
| Operation Mode | Direct reading | |
| Profile scope | 2-90m² | |
| Bottom tracking range | - | |
| Flow measurement accuracy (typical) | ±0.3%±3mm/s | |
| Blind spot | 1m | |
| Flow rate resolution | 1mm/s | |
| Speed test range | ±5.0m/s (default); ±20.0m/s (maximum) | |
| Flow measurement range | 0-360° | |
| Flow measurement accuracy | ±2° | |
| Number of units | 1-255 | |
| Data refresh rate (output rate) | Users can program (2Hz) | |
| Unit layer thickness | 0.5-4m | |
| Transducer | Beam count | 2 horizontal beams, 1 vertical beam |
| Beam angle | 20° | |
| Horizontal beam width | 1.4° | |
| Vertical beam width | 5° | |
| Storage | Internal storage | 64GB Micro SD Card |
| Communication | Communication Interface | RS-232 or RS-422 |
| Sensor | Temperature sensor | Range: -4℃ to 40℃; Accuracy: ±0.2℃; Resolution: 0.01℃ |
| Pressure sensor | Range: 0.1-1m; Accuracy: ±0.25%; Resolution: 1mm | |
| Attitude compass sensor | Range: Roll ±10° | Pitch ±10°; Accuracy (RMS): Roll ±0.5°@10° | Pitch ±0.2°@2° | ; Resolution: 0.01° | |
| Acoustic level meter | Range: 0.1m to 10m³; Accuracy: ±0.1%±3 mm; Resolution: 0.1mm | |
| Power supply | Power supply interface | 10V-26V, 1.5A |
| Power consumption | 5W (10% duty cycle, typical value) | |
| Structure | Casing material | POM |
| Environment | Operating temperature | -5℃-45℃ |
| Storage temperature | -40℃-70℃ | |
| Physical properties | Weight (in air / in water) | 9.8kg/3.6kg |
| Size | Φ300×150mm | |
| Optional | Available options | - |
