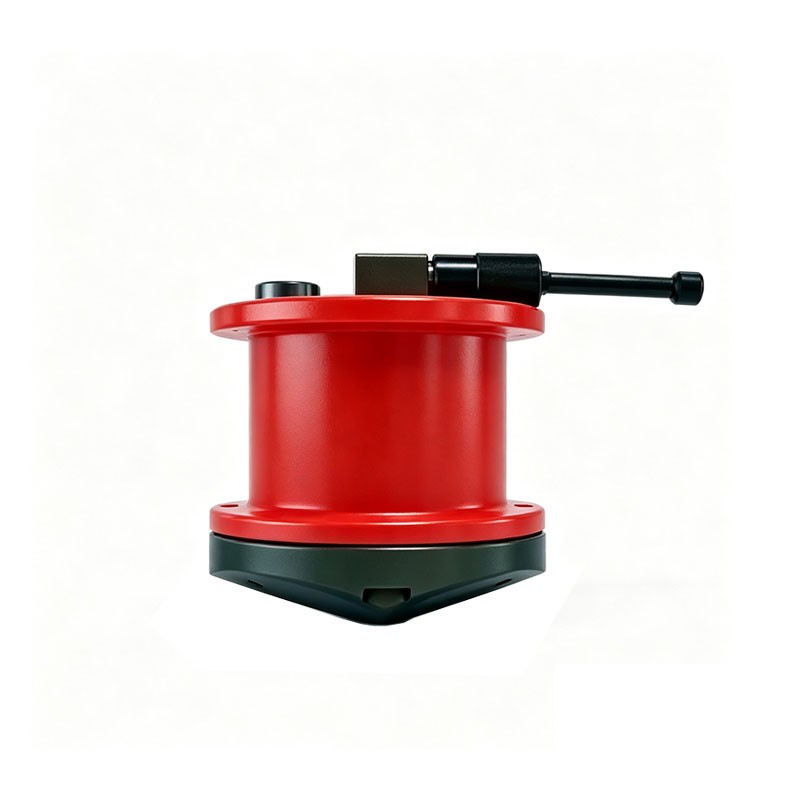

Doppler Current Profiler

Model：FT-HL3

Brand：fengtu

Doppler Current Profiler is based on advanced Doppler current profiling technology and can simultaneously measure water quality indicators such as current velocity, direction, pressure, and temperature.

Get a Free Quote

Product details

Doppler Current Profiler detailed product introduction and technical parameters

Technical Specifications	Parameters
Sound wave frequency	600kHz
Profile scope	Broadband 30~70m Narrowband 35~80m
Beam count	4-beam Janus
Number of units	1~255 floors
Layer thickness	0.5~5m
Speed measurement range	0~500cm/s
Flow velocity measurement accuracy	0.3%±0.3cm
Flow rate resolution	0.1cm
Data refresh rate	2~10hz
Blind spot	1m
Vector range	0-360° magnetic angle
Flow resolution	0.01°
Flow Accuracy	±2°
Temperature range	-5~40°C
Temperature resolution	0.01°C
Temperature accuracy	0.1°C
Communication Interface	RS-232 or RS-422
Temperature sensor	Range: -5℃ to 45℃; Accuracy: ±0.1℃
Pressure sensor	Range: Determined by the depth rating; Accuracy: ±0.25%
Attitude compass sensor	Range: Roll ±85°\|Pitch ±85°\|Heading 0-360°; Accuracy (RMS): Roll 0.2°\|Pitch 0.2°\|Heading 0.8°; Resolution: 0.1°
Average power consumption	≤5W
Operating temperature	-5℃-45℃
Storage temperature	-40℃-70℃
Power supply interface	20V-50V, 2A
