Emergency rescue life detector

1.Overall requirements for Emergency rescue life detector

Emergency rescue life detector enables rescuers to see and communicate with people trapped under rubble, providing clear phone and video functions.Emergency rescue life detector is able to search for victims under collapsed buildings and in narrow spaces.It provides victim information under the ruins to search and rescue personnel through high-definition video and audio signals.*

2.Emergency rescue life detector technical requirements

1.Main functions: Emergency rescue life detector is a special tool for searching for victims under collapsed buildings and in narrow spaces.High-definition video and audio signals can be used to provide search and rescue personnel with information about victims under the ruins.

2.Extra large 10-inch full-color home screen, size ≤300*190*20mm high-precision screen can be enlarged at least 8 times; it is also equipped with a sun visor, which is easy to view under strong sunlight, and the weight of the host is ≤1kg (including battery, not connected Line), one-handed operation; menu keys are easy to recognize and easy to operate; ▲

3.Display tablet monitoring host function: able to record video and take photos, 8x digital enlargement and reduction function, file storage on SD card, memory ≥256G; mirror setting function can flip the photos up, down, left and right 360°; positioning marking function , enter location marks and other information into photos through the display screen, which facilitates browsing, search and management

4.Rechargeable battery: working time ≥8h.

5.Electric audio and video camera: diameter ≤40MM, ≥1080P full HD electric rotating probe.The high-definition video probe can rotate uninterruptedly at 360° and flip 270°.It has two-way voice intercom and has built-in white lights ≥12.▲

6.Waterproof video camera: diameter ≤35mm, equipped with 12 fill lights, protection level IP68, the camera probe can be connected to the carbon fiber telescopic rod through an infinite adjustment direction hose for detection, or it can be detected through the equipped underwater extension cable .

7.Infrared thermal imaging camera: built-in white LED lights ≥8, resolution 384x288, wavelength range 8-14um.▲

8.Waterproof video camera: image resolution 4000*3000, waterproof level IP68.▲

9.It is necessary to configure an independent sound pickup module (for flexible use with video probes, etc.at the rescue site, disassembly and separation) to be used for two-way intercom; noise-cancelling headphones (with microphone) to facilitate clearance with survivors.call.

10.Equipped with carbon fiber telescopic rods at least 5m long, which can telescopic between 1.25m-5m.It is equipped with many 20-meter waterproof connection cables.

11.Protection level of the entire set of equipment IP66.

12.Working temperature: -20℃ to +60℃; 2H

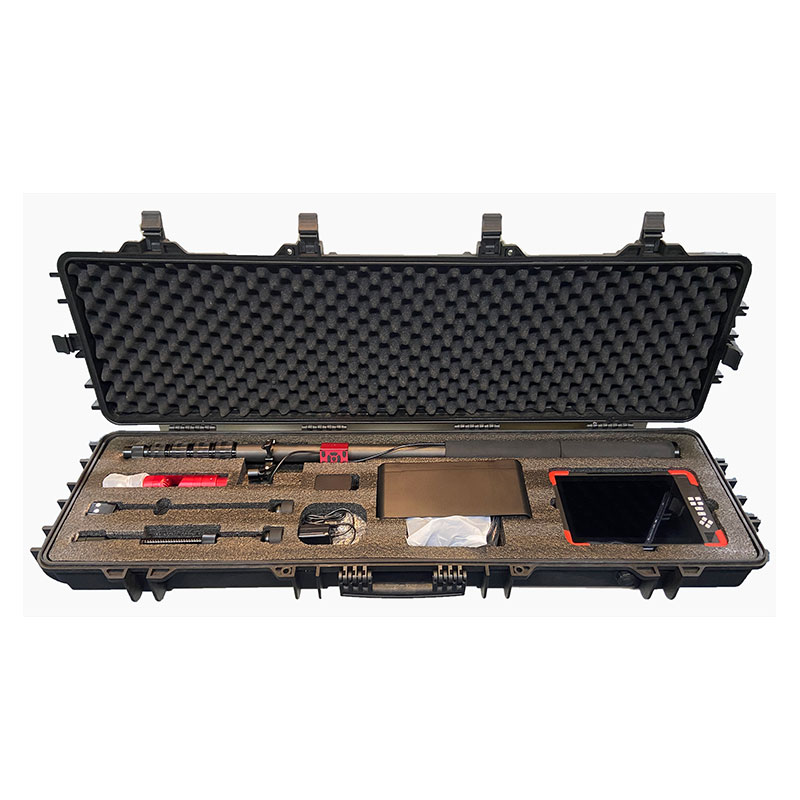

13.The full set of configurations includes: 1 protective safety box, 1 rotating color audio and video probe, 1 infrared thermal imaging probe, 1 waterproof video probe, 1 5-meter carbon fiber telescopic rod, 1 10-inch color monitor, 20 meters Connecting cable, intercom headphones and microphones.Other requirements for Chinese instruction manual

3.Emergency rescue life detector other requirements

1.Provide a national-level testing report or a third-party testing report (the test report has CMA or CNAS mark) during bidding, and the testing report reflects the above technical indicators with "▲".
