Geological disaster emergency rescue equipment

Detailed product introduction and technical parameters of Geological disaster emergency rescue equipment

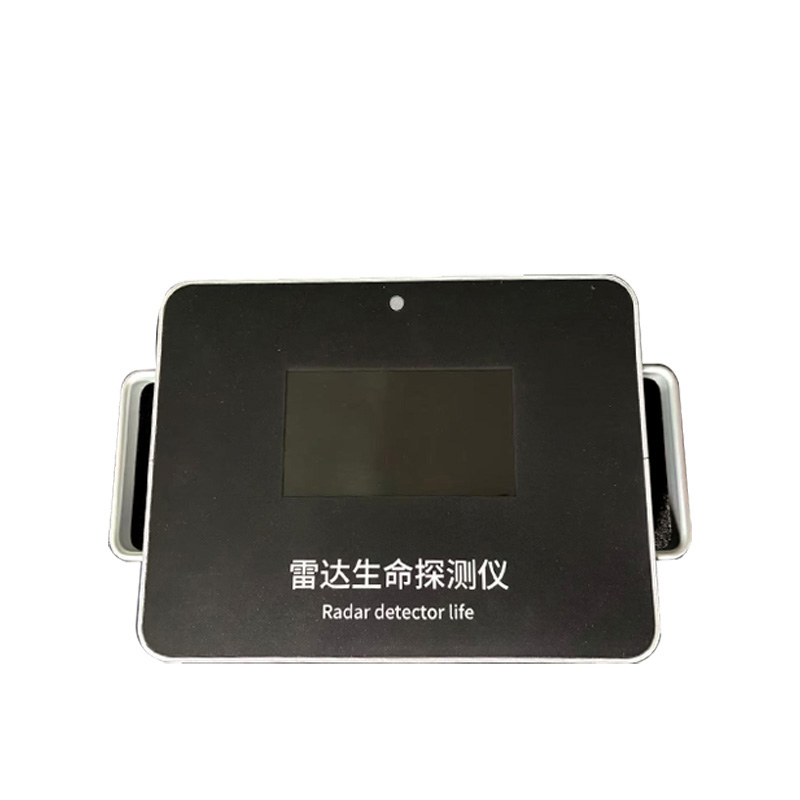

Geological disaster emergency rescue equipment Based on the time domain Doppler effect generated by human movement on the radar echo to determine whether there is life in the ruins and its location information.This product is a vital signs target detection equipment developed by integrating millimeter wave radar technology and biomedical engineering technology.The principle is based on the fact that moving objects will cause the echo to produce the Doppler effect.It receives signals through a high-sensitivity antenna and intelligently identifies the chip.The analysis and positioning algorithms complete real-time tracking of targets and present useful information on the screen.The detector is light in weight, small in size, easy to operate, can be equipped by individual soldiers, and is widely used in military reconnaissance, fire rescue, security inspection and search tasks.

1.Functional features of Geological disaster emergency rescue equipment:

1.One-click operation and enter working status in 3 seconds.

2.The system has a self-test function, which can provide prompts for detected faults.

3.Real-time left, center and right tracking and positioning of moving targets behind the wall;

4.Anti-interference: The normal activities of personnel on the operating side do not affect the operation of the radar, and it has the function of eliminating and prompting interference alarms caused by non-forward targets.

5.Silent mode: Dynamically displays detection information and radar status without noise, which facilitates concealed investigation.

6.It can identify whether it is a metal wall or a steel frame wall, so as to find the weak points of the wall for more effective detection.

2.Geological disaster emergency rescue equipment product parameters:

◆Execute GB 4943.1-2022 "Information and Communication Technology Equipment Part 1" standard

◆Detection distance: ≤30 meters

◆Wall thickness: ≤30 cm (bricks, rocks, non-metal walls, etc.)

◆Detection angle: 120 degrees

◆Screen: 7-inch LCD screen

◆Working power supply: voltage 5V, built-in 5000mA lithium battery (lasts about 10 hours);

◆Configuration: host + bracket + charger + aluminum box;

◆Dimensions: length 400mmx300mmx50mm

◆Outer box size: length 460mmx390mmx170mm

◆Product weight: 7kg (including aluminum box)
