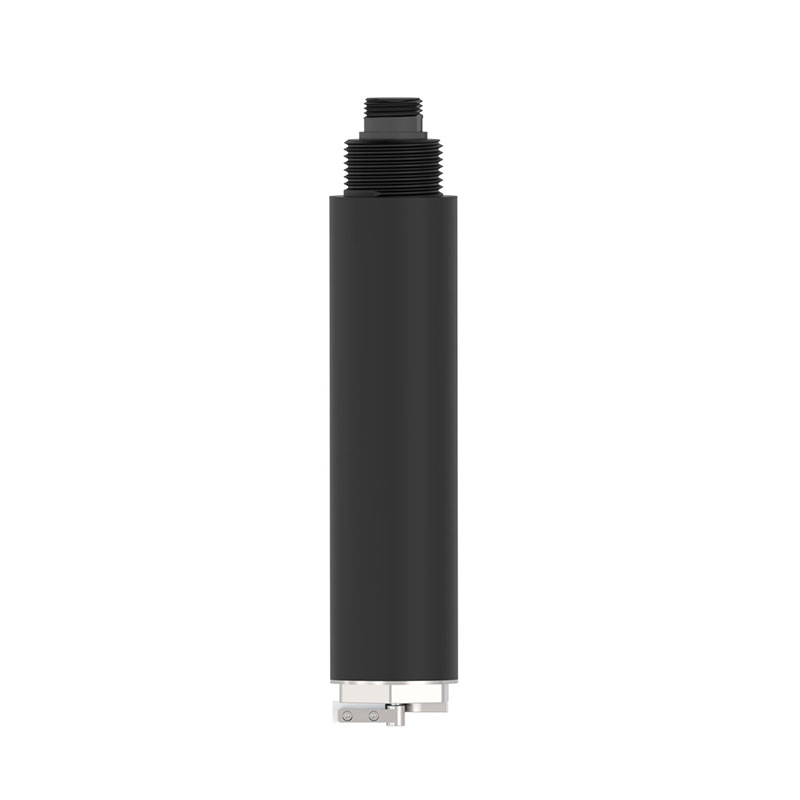

Self-cleaning Turbidity Sensor

one.Self-cleaning Turbidity Sensor working principle

Self-cleaning Turbidity Sensor adopts optical technology, with automatic cleaning brush, integrated design, has strong anti-interference ability and is free from maintenance.The Self-cleaning Turbidity Sensor determines the concentration of particles in a liquid by measuring the scattering of light.It uses a light source to shine into a liquid and then measures the scattered light intensity at different angles.This sensor uses the 90° angle scattered light method to linearly process the collected values, and outputs turbidity values through a temperature compensation algorithm.

two.Self-cleaning Turbidity Sensor technical parameters

three.Self-cleaning Turbidity Sensor Dimensions/Installation

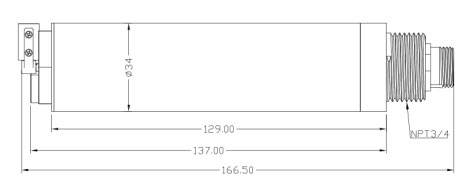

1.Self-cleaning Turbidity Sensor Dimensional Chart

2.Wiring diagram

The cable is a 4-core shielded wire:

Red - power cord blue/black - ground wire green - 485B yellow - 485A

Depending on the production batch, the color of the cable may be slightly different.Please refer to the cable screen printing for details.

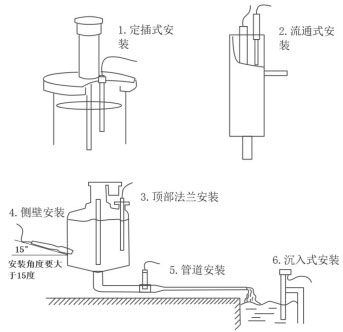

3.Self-cleaning Turbidity Sensor installation

Four.Self-cleaning Turbidity Sensor care and maintenance

Sensor maintenance:

If the sensor needs to be cleaned, use warm water and an appropriate amount of detergent to clean it.

Notice:

Avoid strong vibrations that may damage the transparent glass in front of the ring, and do not scratch it with hard objects.
